EVINRUDE-JOHNSON 5031924 Hook, Engine

Write a Review
$7.00
SKU:
5031924
Schematic Object Key:
50

EVINRUDE-JOHNSON 5031924 Hook, Engine

$7.00

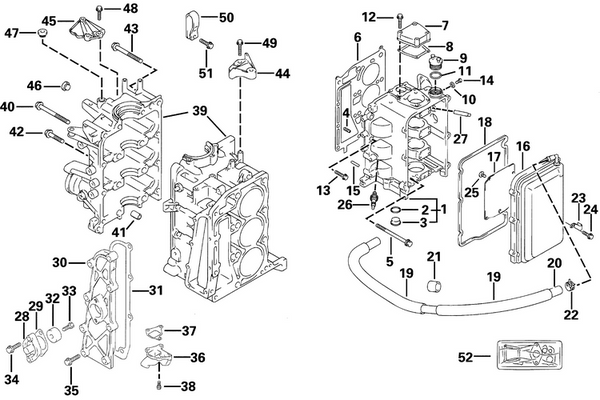

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5031924 Hook, Engine

Schematic Object Key : 50

Product Description: Hook, Engine

Category: EVINRUDE / 2001 / 25 / E25TEL4SIC 4-Stroke, Elec. Start, Tiller, 20 IN. shaft 2001 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5034735 Head assy, cylinder This part replaces 5031913.
2 5031923 Gasket, plug
3 5031881 Plug
4 5030606 Plug, oil venturi
5 5031915 Bolt, cylinder head
6 5031916 Gasket, cylinder head
7 5031919 Cover, cyl head upper
8 5031920 Gasket, cyl head cover
9 5030633 Cap, oil filler
10 5031862 Gasket
11 5030541 O ring
12 5030001 Bolt, cylinder crankcase
13 5030996 Bolt, starter motor bracket
14 5032273 Screw
15 5031014 Pin
16 5031917 Cover, cylinder head
17 5031918 Plate, breather
18 5031921 Gasket, cylinder head cover
19 5032912 Protector, breather hose This part replaces 5031993.
20 HOSE, Breather, 30-1/4" (770mm) | (Cut to Length from 5031064.)
21 5032455 Cushion
22 5030580 Clamp
23 5031903 Clamp
24 5030990 Bolt
25 5031663 Screw, tilt up handle
26 5031287 Plug, spark dcpr6e
27 5032160 Guide, valve o.s.
27 5032160 Guide, valve o.s.
28 5032825 Cover, protection anode This part replaces 5030622.
29 5032825 Cover, protection anode This part replaces 5032600.
30 5031975 Cover, exhaust
31 5031976 Gasket, exhaust cover
32 5031705 Anode
33 5030413 Bolt
34 5030000 Bolt
35 5030990 Bolt
36 5031977 Tube, exhaust 20" models only.
37 5031978 Gasket, exhaust tube 20" models only.
38 5030398 Bolt 20" models only.
39 5031925 Cylinder block assy.
40 5031914 Bolt, crankcase inside
41 5031066 Pin
42 5030998 Bolt
43 5031069 Bolt
44 5031996 Brace, stbd
45 5032002 Brace, front
46 5030521 Bouchon
47 5031252 Plug
48 5030000 Bolt
49 5030001 Bolt, cylinder crankcase
50 5031924 Hook, engine
51 5030995 Bolt, starter motor
52 5034733 Gasket set This part replaces 5032161.
