EVINRUDE-JOHNSON 5032062 Stud, Steering Lock | (Rope & Rope Electric Models Only.)

Write a Review
$18.49
SKU:
5032062
Schematic Object Key:
28

EVINRUDE-JOHNSON 5032062 Stud, Steering Lock | (Rope & Rope Electric Models Only.)

$18.49

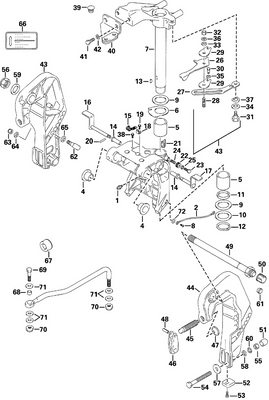

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5032062 Stud, Steering Lock | (Rope & Rope Electric Models Only.)

Schematic Object Key : 28

Product Description: Stud, Steering Lock | (Rope & Rope Electric Models Only.)

Category: EVINRUDE / 2001 / 25 / E25PL4SIC 4-Stroke, Elec. Start, TNT, 15 IN. shaft 2001 / STERN & SWIVEL BRACKET

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5030207 Fitting, grease
2 5031667 Lead mount brkt to hsg This part replaces 5032699.
3 5032057 Bracket, swivel 15" models only.
3 5032056 Bracket, swivel 20" models only.
4 5032058 Bush
5 5032064 Bush, steering
6 5032352 Plate, steering arm, upper
7 5032066 Steering arm 15" models only.
7 5032065 Steering arm 20" models only.
8 5030407 Screw 5x8
9 5031851 Washer
10 5032353 Shim, steering arm, 0.3mm
11 5030548 Seal
12 5030572 Circlip
13 5031907 Key
14 5031491 Bush, tilt lock lever
15 5031492 Spring assy., tilt lock
16 5034248 Lever, tilt lock stbd This part replaces 5032054.
17 5034249 Lever, tilt lock port This part replaces 5032055.
18 5032069 Bracket, tilt lock spring
19 5030035 Bolt
20 5031249 Pin
21 5032354 Adjuster, steering
22 5031499 Cache, dispositif de réglage de direction
23 5032355 Bolt 8x27
24 5031284 Spring
25 5030344 Washer
26 5032060 Adjuster, steering rope rope electric models only.
27 5032061 Plate, steering adjuster rope rope electric models only.
28 5032062 Stud, steering lock rope rope electric models only.
29 5032063 Plate, steering lock rope rope electric models only.
30 5031817 Bolt 6x17 rope rope electric models only.
31 5031819 Bolt 10x20.4 rope rope electric models only.
32 5032356 Nut, shaft, steering lock rope rope electric models only.
33 5031832 Washer rope rope electric models only.
34 5030063 Washer rope rope electric models only.
35 5030429 Washer rope rope electric models only.
36 5032292 Lockwasher, plate, lock rope rope electric models only.
37 5031858 Washer, wave
38 5031821 Bolt 6x12 remote electric tnt models only.
39 5030527 Plug remote electric tnt models only.
40 5032188 Attachment, steering
41 5032177 Bolt remote electric tnt models only.
42 5031611 Lock washer remote electric tnt models only.
43 5032625 Stern bracket, stbd
44 5032626 Stern bracket, port
45 5032052 Screw, clamp
46 5032053 Handle, clamp
47 5030234 Plate, clamp
48 5031865 Pin
49 5034365 Shaft, clamp bracket This part replaces 5031487.
50 5031489 Cap, clamp bracket
51 5030839 Cap, transom bolt
52 5035786 Zinc set, protection This part replaces 5030265.
53 5030035 Bolt
54 5030385 Bolt 12x100
55 5030418 Nut
56 5030427 Nut, tilt tube
57 5030436 Washer
58 5030438 Rondelle entretoise
59 5031846 Washer
60 5030462 Washer, lock This part replaces 5031855.
61 5031490 Plug, clamp bracket remote electric tnt models only.
62 5032068 Pin, tilit lock
63 *5030054 Nut
64 5030057 Washer
65 5030438 Rondelle entretoise
66 5032059 Decal, release lever
67 5030840 Seal
68 5032173 Spacer
69 5032174 Bolt
70 5032175 Nut
71 5032176 Washer
72 5030459 Washer
