EVINRUDE-JOHNSON 5032085 Cover, Upper Mount, Stbd.

Write a Review
$12.00
SKU:
5032085
Schematic Object Key:
19

EVINRUDE-JOHNSON 5032085 Cover, Upper Mount, Stbd.

$12.00

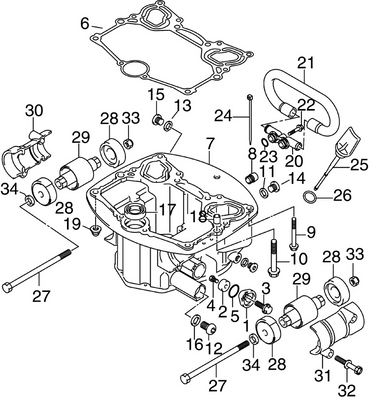

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5032085 Cover, Upper Mount, Stbd.

Schematic Object Key : 19

Product Description: Cover, Upper Mount, Stbd.

Category: EVINRUDE / 2001 / 30 / E30TE4SIC 4-Stroke, Elec. Start, Tiller, 15 IN. shaft 2001 / MIDSECTION & OIL SYSTEM

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5032910 Pipe, water return hose This part replaces 5030732.
2 5032681 Holder, engine
3 5031252 Plug
4 5032078 Gasket, engine holder
5 5031816 Bolt
6 5031822 Bolt
7 5030433 Washer
8 5031863 Gasket
9 5030525 Plug
10 5030539 O ring
11 5031887 O ring d 2.4 id 41.7
12 5031266 Oil seal
13 5032293 Bolt
14 5031603 Bracket, tiller handle
15 5032081 Bolt, upper mount
16 5032082 Washer, upper mount bolt
17 5032083 Mount, upper thrust
18 5032084 Mount, upper
19 5032085 Cover, upper mount, stbd.
20 5032086 Cover, upper mount, port
21 5030391 Bolt
22 *5030054 Nut
23 5031224 Washer
24 5031927 Gasket, oil pan
25 5031928 Oil pan
26 5032682 Plug, water
27 5030850 Pipe, drive shaft hsg
28 5030930 Cover
29 5031173 O ring
30 5030929 Tube, water indicator
31 5030383 Bolt, friction block
32 5031813 Bolt, oil pan to cyl. and crankcase
33 5030433 Washer
34 5031224 Washer
35 5030465 Gasket
36 5030511 Pin
37 5030525 Plug
38 5030536 O ring
39 HOSE, 7-7/8" (200mm) | (Cut to Length from 5030122.)
40 5030577 Clip
41 5031988 Dipstick, oil level
42 5032080 Exhaust housing 15" models only.
42 5032079 Exhaust housing 20" models only.
43 5031212 Bolt
44 5031878 Dowel pin
45 5030821 Bonding lead, exh. hsg. to bracket
46 5030886 Damper, mount
47 5032087 Mount, lower
48 5031531 Bolt, lower mount
49 5030419 Nut
50 5030437 Washer
51 5032294 Stop, lower mount
52 5032088 Bracket, lower mount
53 5031533 Cover, lower mount
54 5031212 Bolt
55 5030407 Screw 5x8
56 5031221 Nut
57 5030438 Rondelle entretoise
58 5031985 Oil pump assy.
59 5030712 Valve assy, oil relief
60 5031986 O ring, oil pump
61 5030714 Stop, oil pump
62 5030715 Washer, oil pump stop
63 5031987 Strainer, oil
64 5031989 Guide, oil level gauge
65 5030392 Bolt 6x16
66 5036000 Gasket This part replaces 5030464.
67 5030469 Gasket
68 5030470 Gasket This part replaces 5031864.
69 5030535 O ring
70 5030537 O ring
71 5032286 Bolt
72 5030988 Bolt, rectifier regula
73 5030992 Bolt
74 0778885 Filter assy, oil This part replaces 5031411.
