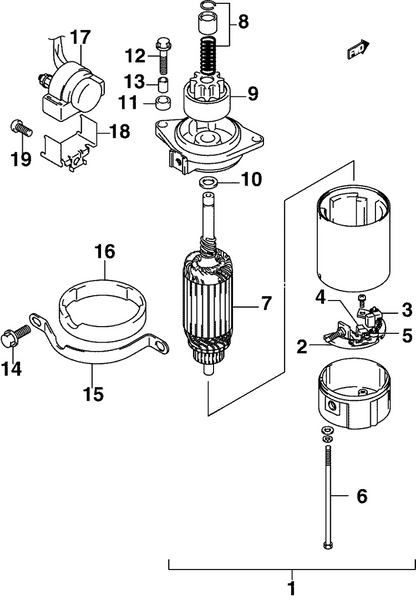

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 2
Product Description: Holder, Brush
Category: JOHNSON / 2005 / 30 / J30TEL4SOC / ELECTRIC STARTER
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5032026 | Motor assy, starting | |
2 | 5032338 | Holder, brush | |
3 | 5032339 | Brush | |
4 | 5032340 | Brush | |
5 | 5032341 | Spring | |
6 | 5032342 | Bolt, housing | |
7 | 5032343 | Amature | |
8 | 5032344 | Pinion stop assy | |
9 | 5032345 | Pinion assy. | |
10 | 5032346 | Washer | |
11 | 5031867 | Spacer | |
12 | 5031079 | Bolt | |
13 | 5032308 | Pin, roll | |
14 | 5030993 | Bolt, control cable holder | |
15 | 5032309 | Band, starter motor | |
16 | 5032028 | Damper, lower | |
17 | 5030783 | Relay assy | |
18 | 5032048 | Bracket | |
19 | 5032310 | Screw |
