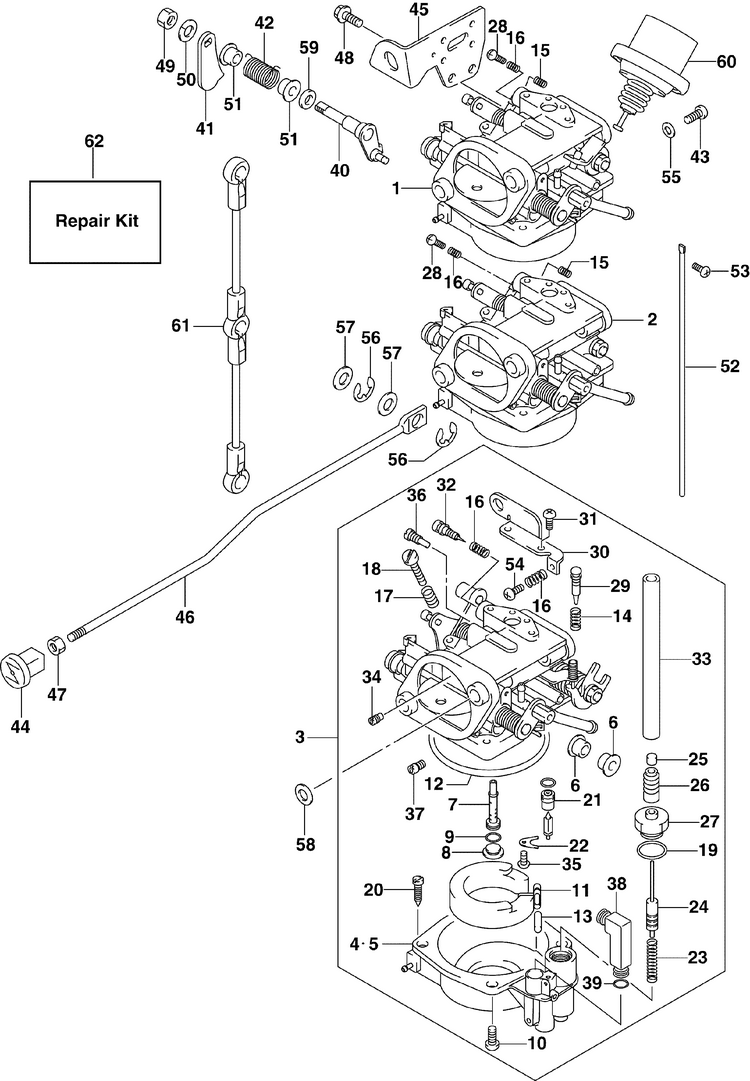

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 25
Product Description: Cap
Category: JOHNSON / 2007 / 30 / J30TEL4SUA / CARBURETORS
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5032201 | Carburetor assy, top | |
2 | 5032202 | Carburetor assy, 2nd | |
3 | 5032203 | Carburetor assy, 3rd | |
4 | 5032373 | Chamber, float 1 2 | |
5 | 5032374 | Chamber, float 3 | |
6 | 5032375 | Bushing | |
7 | 5032377 | Nozzle, main | |
8 | 5032378 | Plug | |
9 | 5032379 | O ring | |
10 | 5032380 | Screw | |
11 | 5032381 | Float | |
12 | 5032382 | Gasket, float chamber | |
13 | 5030168 | Pin | |
14 | 5030169 | Spring | |
15 | 5030170 | Spring | |
16 | 5030170 | Spring | |
17 | 5032387 | Spring 3 | |
18 | 5032388 | Screw 3 | |
19 | 5032389 | O ring | |
20 | 5032390 | Adjuster | |
21 | 5032391 | Valve assy, needle | |
22 | 5032392 | Plate | |
23 | 5032393 | Spring | |
24 | 5032394 | Plunger | |
25 | 5032395 | Cap | |
26 | 5032396 | Cap | |
27 | 5032397 | Guide, holder | |
28 | 5032398 | Screw 1 2 | |
29 | 5030174 | Screw | |
30 | 5032400 | Bracket | |
31 | 5032401 | Screw | |
32 | 5032402 | Adjuster | |
33 | 5032403 | Hose 1 2 l 125mm | |
33 | 5032403 | Hose 1 2 l 125mm | |
34 | 5032405 | Jet, main air 0.7 | |
35 | 5032406 | Screw | |
36 | 5032408 | Jet, pilot 40 | |
37 | 5032410 | Jet, main 110 | |
38 | 5037548 | Union | |
39 | 5036039 | O ring | |
40 | 5032404 | Shaft assy | |
41 | 5032411 | Lever | |
42 | 5032412 | Spring | |
43 | 5032413 | Screw | |
44 | 5031969 | Knob, starter tel model | |
45 | 5032279 | Protector, carburetor | |
46 | 5032414 | Rod, choke tel model | |
47 | 5030415 | Nut tel model | |
48 | 5030988 | Bolt, rectifier regula | |
49 | 5032415 | Nut | |
50 | 5030068 | Rondelle | |
51 | 5032375 | Bushing | |
52 | 5032418 | Cable | |
53 | 5032419 | Screw | |
54 | 5032420 | Screw | |
55 | 5032421 | Washer | |
56 | 5032422 | E ring, retainer tel model | |
57 | 5032423 | Washer tel model | |
58 | 5032695 | Shim | |
59 | 5034668 | Spacer | |
60 | 5031967 | Dash pot assy | |
61 | 5031968 | Rod, throttle | |
62 | 5032424 | Carburetor repair kit |
