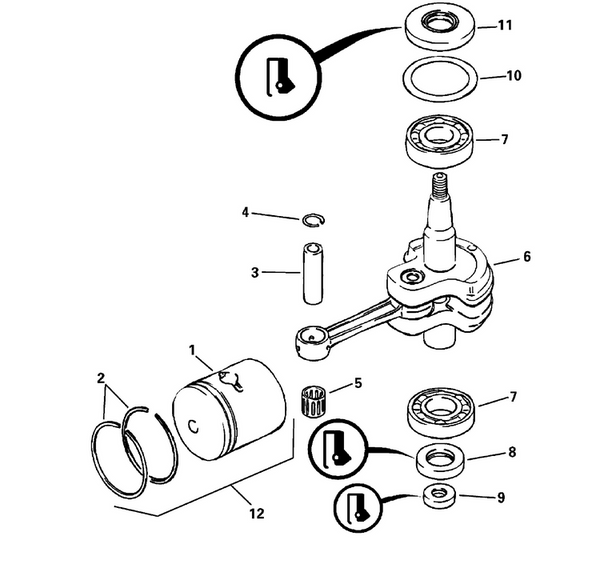

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 12
Product Description: Piston & Ring Set, 0.25Mm O.S.
Category: JOHNSON / 2001 / 5 / J5RVSIM Rope Start, Tiller, 15 IN. shaft, White 2001 / CRANKSHAFT AND PISTON
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5032488 | Piston assy | |
2 | 5030152 | Ring set, piston | |
3 | 5030153 | Wrist pin, piston | |
4 | 5030129 | Retainer, wrist pin | |
5 | 5030100 | Bearing, wrist pin | |
6 | 5030155 | Crankshaft assy. | |
7 | 5030098 | Bearing, crankshaft | |
8 | 5030110 | Seal, crankshaft, lower included in powerhead gasket set. | |
9 | 5030109 | Seal, driveshaft, upper included in powerhead gasket set. | |
10 | 5030067 | Thrust washer, crankshaft | |
11 | 5030111 | Seal, crankshaft, upper included in powerhead gasket set. | |
12 | 5032489 | Piston ring set, 0.25mm o.s. | |
12 | 5032490 | Piston ring set, 0.50mm o.s. |
