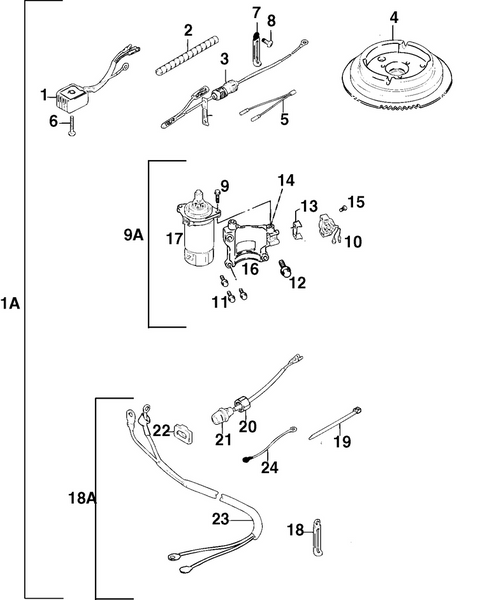

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 17
Product Description: Motor, Starter
Category: JOHNSON / 2003 / 15 / J15R4STC / ELECTRIC START KIT
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1A | 5034022 | Electric start kit | |
1 | 5030356 | Rectifier | |
2 | 5030832 | Tube | |
3 | 5032043 | Case assy, fuse | |
4 | 5032726 | Flywheel | |
5 | 5033155 | Lead, neutral limit | |
6 | 5033301 | Screw | |
7 | 5030135 | Clamp, rect reg lead | |
8 | 5033302 | Screw | |
9A | 5034019 | Starter motor kit | |
9 | 5030002 | Bolt | |
10 | 5030783 | Relay assy | |
11 | 5030995 | Bolt, starter motor | |
12 | 5030997 | Bolt, mount | |
13 | 5032048 | Bracket | |
14 | 5032308 | Pin, roll not shown | |
15 | 5032310 | Screw | |
16 | 5032725 | Bracket, starter | |
17 | 5033145 | Motor, starter | |
18A | 5034020 | Starter cable set | |
18 | 5032824 | Clamp, battery | |
19 | 5030589 | Clamp l 125mm | |
20 | 5031828 | Nut | |
21 | 5032044 | Starter switch assy | |
22 | 5033148 | Grommet | |
23 | 5033149 | Battery cable assy | |
24 | 5032683 | Cable, starter |
