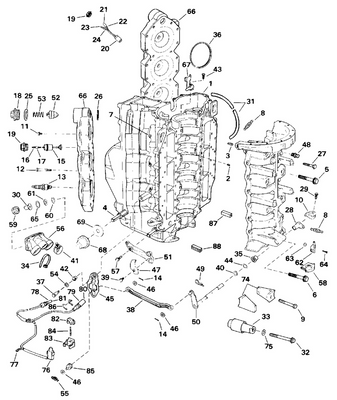

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 25
Product Description: Valve, Reed
Category: JOHNSON / 2007 / 2.5 / J2R4SUC / CYLINDER & CRANKCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5037296 | Block assy, cylinder | |
2 | 5037297 | Seal, oil | |
3 | 5037298 | Bearing, crankshaft lower | |
4 | 5037299 | Case assy, crankshaft | |
5 | 5037298 | Bearing, crankshaft lower | |
6 | 5037301 | Gasket, crankcase | |
7 | 5031015 | Pin | |
8 | 5030990 | Bolt | |
9 | 5037302 | Seal, driveshaft | |
10 | 5037303 | Seal, crankshaft | |
11 | 5037304 | Cap, oil filler | |
12 | 5030104 | O ring | |
13 | 5030071 | Gasket | |
14 | 5030094 | Bolt 10x7.5mm | |
15 | 5036804 | Anode | |
16 | 5036805 | Screw, anode | |
17 | 5033385 | Thermostat | |
18 | 5037305 | Cover, thermostat | |
19 | 5037306 | Gasket, thermostat cover | |
20 | 5030000 | Bolt | |
21 | 5037307 | Plate, breather | |
22 | 5031009 | Bolt, breather plate | |
23 | 5037308 | Gasket, breater plate | |
24 | 5037309 | Hose, breather | |
25 | 5033349 | Valve, reed | |
26 | 5037455 | Screw | |
27 | 5037310 | Plate, under oil seal | |
28 | 5037311 | Bolt, under oil seal plate |
