EVINRUDE-JOHNSON 5033565 Housing, Prop Sft Brg

Write a Review
$385.49
SKU:
5033565
Schematic Object Key:
21

EVINRUDE-JOHNSON 5033565 Housing, Prop Sft Brg

$385.49

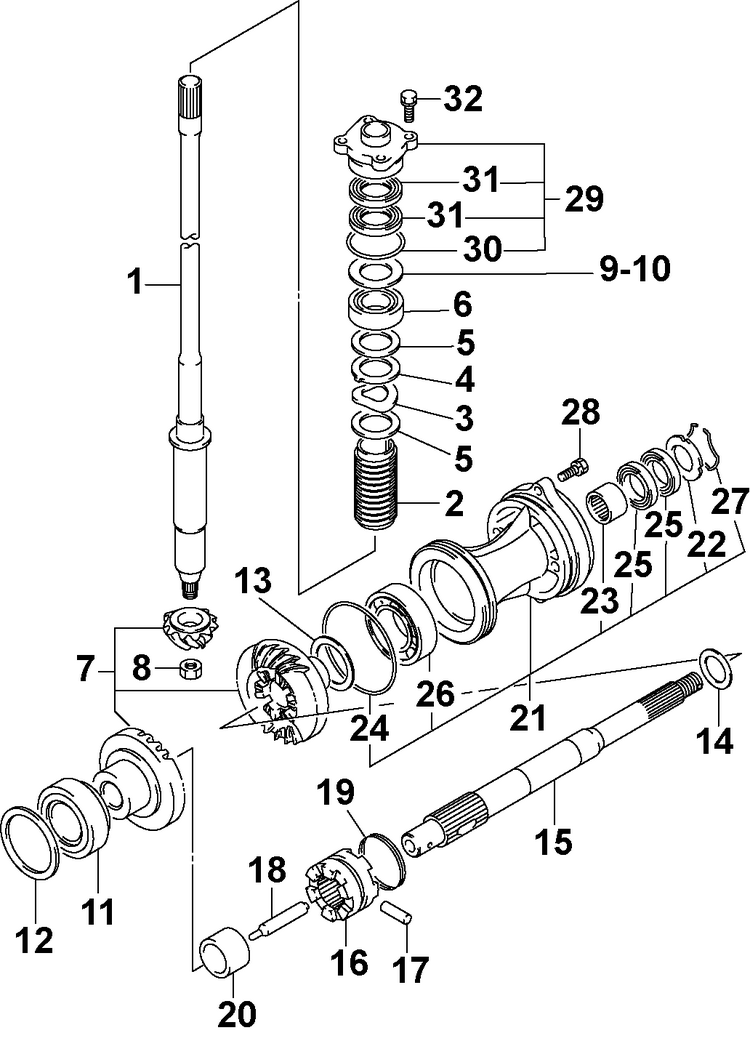

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5033565 Housing, Prop Sft Brg

Schematic Object Key : 21

Product Description: Housing, Prop Sft Brg

Category: JOHNSON / 2003 / 90 / J90PX4STS / GEARS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5033848 Shaft assy, drive 20 in. models
1 5034157 Shaft assy, drive 25 in. models
2 5032553 Collar, drive shaft
3 5032554 Washer, wave
4 5032555 Washer
5 5032556 Washer
6 5030532 Bearing This part replaces 5032881.
7 5034641 Pinion gear set This part replaces 5033851.
8 5032877 Nut
9 5030975 Shim kit, driveshaft
10 5030488 Shim 41x52x0.60mm
10 5030489 Shim 41x52x0.65mm
10 5030490 Shim 41x52x0.70mm
10 5030491 Shim 41x52x0.75mm
10 5030485 Shim 41x52x0.80mm
10 5030492 Shim 41x52x0.85mm
10 5030493 Shim 41x52x0.90mm
10 5030494 Shim 41x52x0.95mm
10 5030486 Shim 41x52x1.00mm
10 5030495 Shim 41x52x1.05mm
10 5030496 Shim 41x52x1.10mm
10 5030497 Shim 41x52x1.15mm
11 5032882 Bearing
12 5032559 Shim, 0.45mm
12 5032560 Shim, 0.50mm
12 5032561 Shim, 0.55mm
12 5032562 Shim, 0.60mm
12 5032563 Shim, 0.65mm
12 5032564 Shim, 0.70mm
12 5032565 Shim, 0.75mm
12 5032566 Shim, 0.80mm
12 5032567 Shim, 0.85mm
12 5032568 Shim, 0.90mm
13 5032569 Shim, 1.0mm
13 5032570 Shim, 1.1mm
13 5032571 Shim, 1.2mm
13 5032572 Shim, 1.3mm
13 5032573 Shim, 1.4mm
13 5032574 Shim, 1.5mm
13 5032575 Shim, 1.6mm
14 5032576 Shim, 0.9mm
14 5032577 Shim, 1.0mm
14 5032578 Shim, 1.2mm
14 5032579 Shim, 1.3mm
14 5032580 Shim, 1.4mm
14 5032581 Shim, 1.6mm
15 5034158 Shaft assy, propeller
16 5033953 Shifter, clutch dog
17 5032584 Pin
18 5033855 Pin, connector
19 5034145 Spring
20 5033952 Spacer
21 5033565 Housing, prop sft brg
22 5033845 Washer, oil seal protector
23 5034143 Bearing
24 5032589 O ring
25 5032590 Oil seal
26 5034137 Bearing
27 5032592 Circlip
28 5031216 Bolt
29 5033846 Housing
30 5030542 O ring
31 5033612 Oil seal
32 5030398 Bolt
