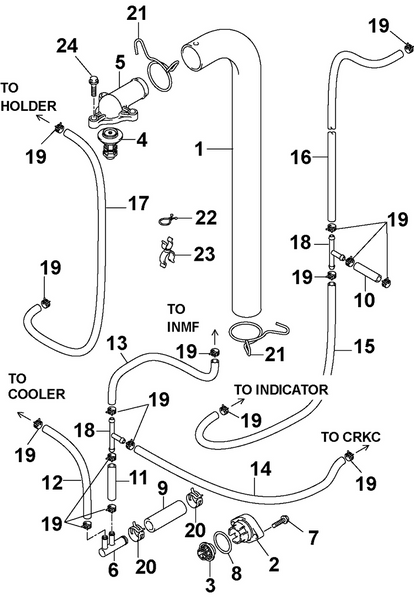

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 1
Product Description: Hose, Water Return
Category: JOHNSON / 2006 / 115 / BJ115PX4SDA / THERMOSTAT
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5033644 | Hose, water return | |
2 | 5035956 | Cover, water pressure valve | |
3 | 5033720 | Valve, water pressure | |
4 | 5033721 | Thermostat 60.c | |
4 | 5033722 | Thermostat 71.c optional | |
5 | 5036683 | Cover, thermostat | This part replaces 5033723. |
6 | 5033724 | 3 way, water hose | |
7 | 5030391 | Bolt | |
8 | 5030541 | O ring | |
9 | 5033621 | Hose holder to 3 way l 50mm cut to length from bulk roll | |
10 | 5030122 | Hose 150mm cut to length from bulk roll | |
11 | 5030122 | Hose 150mm cut to length from bulk roll | |
12 | 5030122 | Hose 150mm cut to length from bulk roll | |
13 | 5030122 | Hose 150mm cut to length from bulk roll | |
14 | 5030122 | Hose 150mm cut to length from bulk roll | |
15 | 5030122 | Hose 150mm cut to length from bulk roll | |
16 | 5030122 | Hose 150mm cut to length from bulk roll | |
17 | 5033024 | Hose 3 wayto holder l 690mm cut to length from bulk roll | |
18 | 5030127 | 3 way | |
19 | 5037047 | Clip | |
20 | 5033626 | Clip | |
21 | 5037177 | Clip | |
22 | 5033629 | Clamp | |
23 | 5033630 | Clamp | |
24 | 5030990 | Bolt |
