EVINRUDE-JOHNSON 5033848 Shaft Assy, Drive 20 In. Models

Write a Review
$1,300.99
SKU:
5033848
Schematic Object Key:
1

EVINRUDE-JOHNSON 5033848 Shaft Assy, Drive 20 In. Models

$1,300.99

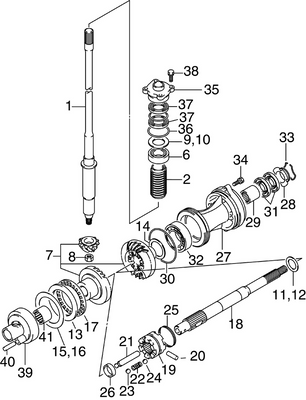

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5033848 Shaft Assy, Drive 20 In. Models

Schematic Object Key : 1

Product Description: Shaft Assy, Drive 20 In. Models

Category: JOHNSON / 2003 / 140 / J140PL4STS / GEARS, STANDARD

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5033848 Shaft assy, drive 20 in. models
1 5034157 Shaft assy, drive 25 in. models
2 5032553 Collar, drive shaft
3 5032554 Washer, wave
4 5032555 Washer
5 5032556 Washer
6 5030532 Bearing This part replaces 5032881.
7 5033950 Pinion gear set
8 5033966 Nut
9 5030975 Shim kit, driveshaft
10 5030488 Shim 41x52x0.60mm
10 5030489 Shim 41x52x0.65mm
10 5030490 Shim 41x52x0.70mm
10 5030491 Shim 41x52x0.75mm
10 5030485 Shim 41x52x0.80mm
10 5030492 Shim 41x52x0.85mm
10 5030493 Shim 41x52x0.90mm
10 5030494 Shim 41x52x0.95mm
10 5030486 Shim 41x52x1.00mm
10 5030495 Shim 41x52x1.05mm
10 5030496 Shim 41x52x1.10mm
10 5030497 Shim 41x52x1.15mm
11 5033990 Shim set, prop shaft rev
12 5034165 Washer 30x38x1.5mm
12 5033967 Washer 30x38x1.7mm
12 5033595 Washer 30x38x1.9mm
12 5033968 Washer 30x38x2.1mm
12 5033969 Washer 30x38x2.3mm
12 5034166 Washer 30x38x2.4mm
12 5033970 Washer 30x38x2.6mm
12 5033971 Washer 30x38x2.7mm
12 5033972 Washer 30x38x2.8mm
13 5033973 Washer, fwd 70x95x5.25mm
14 5032569 Shim, 1.0mm
14 5032570 Shim, 1.1mm
14 5032571 Shim, 1.2mm
14 5032572 Shim, 1.3mm
14 5032573 Shim, 1.4mm
14 5032574 Shim, 1.5mm
14 5032575 Shim, 1.6mm
15 5033991 Shim set
16 5033974 Shim 70x95x0.7mm
16 5033975 Shim 70x95x0.8mm
16 5033977 Shim 70x95x1.0mm
16 5033978 Shim 70x95x0.6mm
16 5033979 Shim 70x95x0.65mm
16 5033980 Shim 70x95x0.75mm
16 5033981 Shim 70x95x0.85mm
16 5033982 Shim 70x95x0.95mm
17 5033986 Bearing 70x95x4.0mm forward
18 5033951 Shaft assy, propeller
19 5033953 Shifter, clutch dog
20 5032584 Pin
21 5033855 Pin, connector
22 5034145 Spring
23 5033952 Spacer
24 5033946 Housing, prop sft brg
25 5033947 Washer, oil seal protector
26 5033905 Bearing
27 5032589 O ring
28 5033907 Oil seal
29 5034137 Bearing
30 5032592 Circlip
31 5031216 Bolt
32 5033846 Housing
33 5030542 O ring
34 5033612 Oil seal
35 5030398 Bolt
36 5033948 Housing, fwd gear brg
37 5032549 Pin, knock
38 5033985 Bearing
