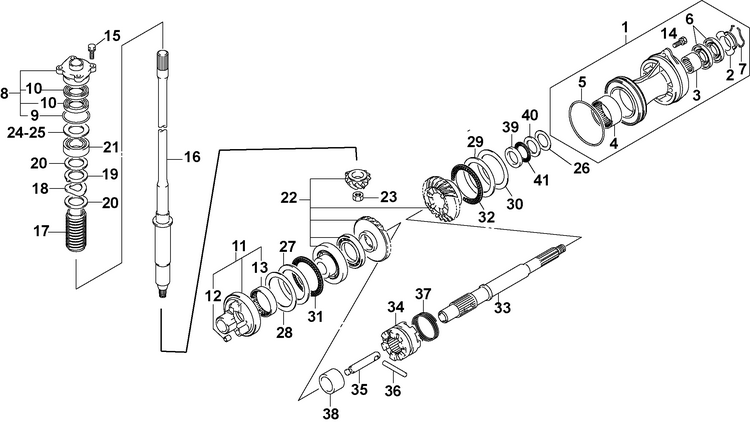

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 16
Product Description: Shaft Assy, Drive 25 In. Models
Category: JOHNSON / 2003 / 140 / J140CX4STS / GEARS, COUNTER ROTATION
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5034098 | Housing, bearing | |
2 | 5033947 | Washer, oil seal protector | |
3 | 5033905 | Bearing | |
4 | 5033985 | Bearing | |
5 | 5032589 | O ring | |
6 | 5033907 | Oil seal | |
7 | 5032592 | Circlip | |
8 | 5033846 | Housing | |
9 | 5030542 | O ring | |
10 | 5033612 | Oil seal | |
11 | 5034099 | Housing, rev gear bearing | |
12 | 5032549 | Pin, knock | |
13 | 5034093 | Bearing 45x52x16mm | |
14 | 5031216 | Bolt | |
15 | 5030398 | Bolt | |
16 | 5034157 | Shaft assy, drive 25 in. models | |
17 | 5032553 | Collar, drive shaft | |
18 | 5032554 | Washer, wave | |
19 | 5032555 | Washer | |
20 | 5032556 | Washer | |
21 | 5030532 | Bearing | This part replaces 5032881. |
22 | 5034100 | Pinion gear set | |
23 | 5032877 | Nut | |
24 | 5030975 | Shim kit, driveshaft | |
25 | 5030488 | Shim 41x52x0.60mm | |
25 | 5030489 | Shim 41x52x0.65mm | |
25 | 5030490 | Shim 41x52x0.70mm | |
25 | 5030491 | Shim 41x52x0.75mm | |
25 | 5030485 | Shim 41x52x0.80mm | |
25 | 5030492 | Shim 41x52x0.85mm | |
25 | 5030493 | Shim 41x52x0.90mm | |
25 | 5030494 | Shim 41x52x0.95mm | |
25 | 5030486 | Shim 41x52x1.00mm | |
25 | 5030495 | Shim 41x52x1.05mm | |
25 | 5030496 | Shim 41x52x1.10mm | |
25 | 5030497 | Shim 41x52x1.15mm | |
26 | 5034111 | Washer 35x46x0.6mm propeller shaft, reverse | |
26 | 5034110 | Washer 35x46x0.70mm propeller shaft, reverse | |
26 | 5034109 | Washer 35x46x0.7mm propeller shaft, reverse | |
26 | 5034105 | Washer 35x46x0.95mm propeller shaft, reverse | |
26 | 5034106 | Washer 35x46x1.05mm propeller shaft, reverse | |
26 | 5034103 | Washer 35x46x1.0mm propeller shaft, reverse | |
26 | 5034107 | Washer 35x46x1.15mm propeller shaft, reverse | |
26 | 5034104 | Washer 35x46x1.1mm propeller shaft, reverse | |
26 | 5034108 | Washer 35x46x0.8mm propeller shaft, reverse | |
27 | 5034091 | Washer 60x85x3.0mm reverse gear | |
28 | 5034117 | Washer 60x85x0.8mm reverse gear | |
28 | 5034118 | Washer 60x85x0.9mm reverse gear | |
28 | 5034112 | Washer 60x85x1.0mm reverse gear | |
28 | 5034113 | Washer 60x85x1.1mm reverse gear | |
28 | 5034114 | Washer 60x85x1.2mm reverse gear | |
28 | 5034115 | Washer 60x85x1.3mm reverse gear | |
28 | 5034116 | Washer 60x85x1.4mm reverse gear | |
29 | 5034092 | Washer 70x95x3.7mm forward gear | |
30 | 5033978 | Shim 70x95x0.6mm forward gear | |
30 | 5033979 | Shim 70x95x0.65mm forward gear | |
30 | 5033974 | Shim 70x95x0.7mm forward gear | |
30 | 5033980 | Shim 70x95x0.75mm forward gear | |
30 | 5033975 | Shim 70x95x0.8mm forward gear | |
30 | 5033981 | Shim 70x95x0.85mm forward gear | |
30 | 5033976 | Shim 70x95x0.9mm forward gear | |
30 | 5033982 | Shim 70x95x0.95mm forward gear | |
30 | 5033977 | Shim 70x95x1.0mm forward gear | |
31 | 5034119 | Bearing 60x85x3.0mm reverse | |
32 | 5033986 | Bearing 70x95x4.0mm forward | |
33 | 5034101 | Shaft, propeller | |
34 | 5033953 | Shifter, clutch dog | |
35 | 5033855 | Pin, connector | |
36 | 5032584 | Pin | |
37 | 5034145 | Spring | |
38 | 5034102 | Spacer, clutch dog fwd | |
39 | 5034089 | Washer 30x47x6.0mm propeller shaft, reverse | |
40 | 5034090 | Washer 32x47x3.0mm propeller shaft, reverse | |
41 | 5034094 | Bearing 30x47x2.0mm propeller shaft, reverse |
