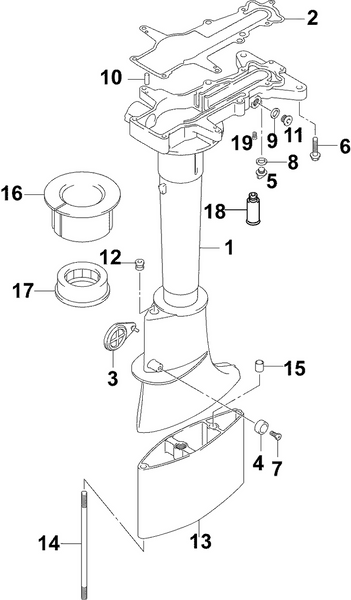

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 12
Product Description: Bushing
Category: JOHNSON / 2007 / 4 / J4R4SUM / DRIVESHAFT HOUSING
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5036587 | Housing, drive shaft | |
2 | 5034446 | Gasket, drive shaft hsg | |
3 | 5030262 | Cover, clutch adjust hole | |
4 | 5031705 | Anode | |
5 | 5030094 | Bolt 10x7.5mm | |
6 | 5033333 | Bolt 6x38mm | |
7 | 5036691 | Bolt | |
8 | 5030071 | Gasket | |
9 | 5031863 | Gasket | |
10 | 5031877 | Dowel pin | |
11 | 5030525 | Plug | |
12 | 5034189 | Bushing | |
13 | 5033422 | Case, extension 20 in. models | |
14 | 5033474 | Bolt, stud 20 in. models | |
15 | 5030092 | Pin 20 in. models | |
16 | 5034340 | Rubber, mount upper | |
17 | 5033424 | Rubber, mount lower | |
18 | 5031537 | Attachment, flush hose accessory | |
19 | 5036311 | Tube, water inspection |
