EVINRUDE-JOHNSON 5035169 Cushion, Oil Pan Cov Upper

Write a Review
$14.99
SKU:
5035169
Schematic Object Key:
3

EVINRUDE-JOHNSON 5035169 Cushion, Oil Pan Cov Upper

$14.99

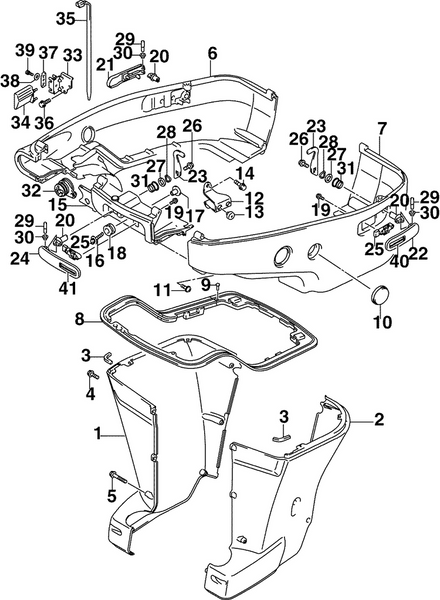

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5035169 Cushion, Oil Pan Cov Upper

Schematic Object Key : 3

Product Description: Cushion, Oil Pan Cov Upper

Category: JOHNSON / 2005 / 225 / BJ225X4SO / LOWER ENGINE COVER

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5035167 Cover, oil pan stbd
2 5036672 Cover, oil pan port This part replaces 5035729.
3 5035169 Cushion, oil pan cov upper
4 5034789 Screw, oil pan cov
5 5034790 Screw, oil pan cov
6 5035780 Cover, side stbd new for 2005
7 5035814 Cover, side port new for 2005
8 5035168 Seal, side cover
9 5031906 Clip
10 5035199 Plug, side cover
11 5033589 Screw 6x35
12 5035201 Holder side cover
13 5034838 Cushion, side cover holder
14 5030994 Bolt, lower
15 5035202 Panel, front
16 5030402 Bolt 8x40mm
17 5030473 Washer
18 5030558 Cushion
19 5035636 Bolt, hook lever latch
20 5035190 Shaft, engine cover hook
21 5035191 Lever, hook rr stbd
22 5035192 Lever, hook rr port
23 5035194 Hook, engine cover
24 5035195 Lever, hook fr
25 5035197 Latch, hook lever
26 5031821 Bolt 6x12
27 5031833 Washer 13.2x25x1.0
28 5031858 Washer, wave
29 5034820 Pin, hook lever
30 5034835 Bushing, hook lever pin
31 5031894 Bush
32 5035166 Grommet, remote cable
33 5035204 Holder, remote cable
34 5035205 Protector, remote cable
35 0320107 Tie strap This part replaces 5030347.
36 5030989 Bolt
37 5031593 Stopper, remote cable
38 5034142 Washer, throttle lever
39 5034131 Bolt
40 5035193 Decal, hook lever rear port
41 5035196 Decal, hook lever rear stbd frt
