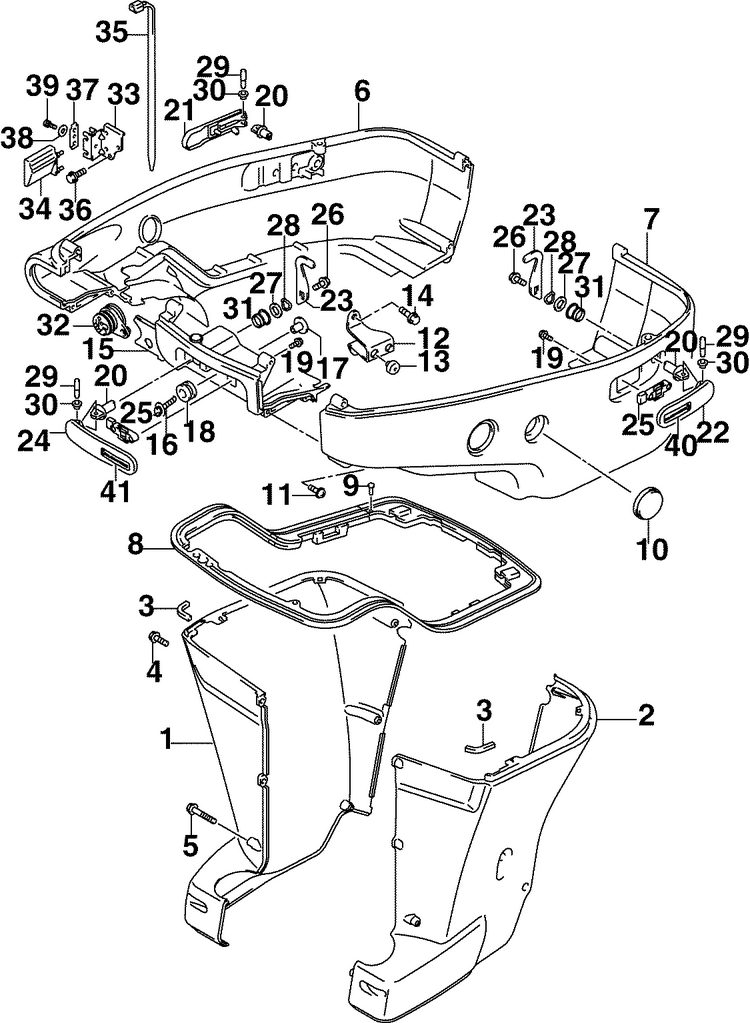

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 15
Product Description: Panel, Front
Category: JOHNSON / 2005 / 225 / BJ225X4SO / LOWER ENGINE COVER
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 5035167 | Cover, oil pan stbd | |
| 2 | 5036672 | Cover, oil pan port | This part replaces 5035729. |
| 3 | 5035169 | Cushion, oil pan cov upper | |
| 4 | 5034789 | Screw, oil pan cov | |
| 5 | 5034790 | Screw, oil pan cov | |
| 6 | 5035780 | Cover, side stbd new for 2005 | |
| 7 | 5035814 | Cover, side port new for 2005 | |
| 8 | 5035168 | Seal, side cover | |
| 9 | 5031906 | Clip | |
| 10 | 5035199 | Plug, side cover | |
| 11 | 5033589 | Screw 6x35 | |
| 12 | 5035201 | Holder side cover | |
| 13 | 5034838 | Cushion, side cover holder | |
| 14 | 5030994 | Bolt, lower | |
| 15 | 5035202 | Panel, front | |
| 16 | 5030402 | Bolt 8x40mm | |
| 17 | 5030473 | Washer | |
| 18 | 5030558 | Cushion | |
| 19 | 5035636 | Bolt, hook lever latch | |
| 20 | 5035190 | Shaft, engine cover hook | |
| 21 | 5035191 | Lever, hook rr stbd | |
| 22 | 5035192 | Lever, hook rr port | |
| 23 | 5035194 | Hook, engine cover | |
| 24 | 5035195 | Lever, hook fr | |
| 25 | 5035197 | Latch, hook lever | |
| 26 | 5031821 | Bolt 6x12 | |
| 27 | 5031833 | Washer 13.2x25x1.0 | |
| 28 | 5031858 | Washer, wave | |
| 29 | 5034820 | Pin, hook lever | |
| 30 | 5034835 | Bushing, hook lever pin | |
| 31 | 5031894 | Bush | |
| 32 | 5035166 | Grommet, remote cable | |
| 33 | 5035204 | Holder, remote cable | |
| 34 | 5035205 | Protector, remote cable | |
| 35 | 0320107 | Tie strap | This part replaces 5030347. |
| 36 | 5030989 | Bolt | |
| 37 | 5031593 | Stopper, remote cable | |
| 38 | 5034142 | Washer, throttle lever | |
| 39 | 5034131 | Bolt | |
| 40 | 5035193 | Decal, hook lever rear port | |
| 41 | 5035196 | Decal, hook lever rear stbd frt |
