EVINRUDE-JOHNSON 5035653 Ball, Detent No.2

Write a Review
$4.56
SKU:
5035653
Schematic Object Key:
22

EVINRUDE-JOHNSON 5035653 Ball, Detent No.2

$4.56

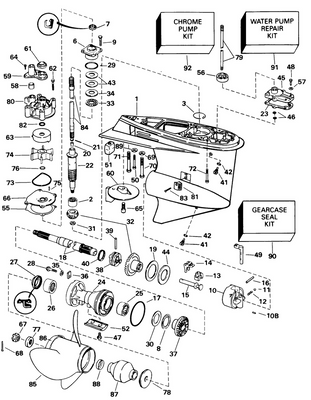

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5035653 Ball, Detent No.2

Schematic Object Key : 22

Product Description: Ball, Detent No.2

Category: JOHNSON / 2005 / 225 / BJ225CX4SO / GEARS - COUNTER ROTATION

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5035155 Shaft, drive
1 5035523 Shaft, drive 30 in. models new for 2005
2 5035156 Collar, drive shaft
3 5035157 Spacer, drive shaft bearing
4 5034793 Nut, drive shaft bearing
5 5034825 Bearing, drive shaft
6 5035492 Pinion gear set
7 5034800 Shim 60x66x0.45mm
7 5034801 Shim 60x66x0.5mm
7 5034802 Shim 60x66x0.55mm new for 2005
7 5035803 Bracket, clamp port new for 2005
7 5034804 Shim 60x66x0.65mm
7 5034805 Shim 60x66x0.7mm
7 5034806 Shim 60x66x0.75mm
7 5034807 Shim 60x66x0.8mm
7 5034808 Shim 60x66x0.85mm
7 5034809 Shim 60x66x0.9mm
8 5035236 Nut, pinion
9 5035660 Washer, pinion nut
10 5034111 Washer 35x46x0.6mm
10 5034109 Washer 35x46x0.7mm
10 5034108 Washer 35x46x0.8mm
10 5035499 Washer 35x46x0.9mm
10 5034105 Washer 35x46x0.95mm
10 5034103 Washer 35x46x1.0mm
10 5034106 Washer 35x46x1.05mm
10 5034104 Washer 35x46x1.1mm
10 5034107 Washer 35x46x1.15mm
11 5034798 Washer, thrust forward gear
12 5034800 Shim 60x66x0.45mm reverse gear
12 5034801 Shim 60x66x0.5mm reverse gear
12 5034802 Shim 60x66x0.55mm reverse gear, new for 2005
12 5034803 Shim 60x66x0.55mm reverse gear, new for 2005
12 5034804 Shim 60x66x0.65mm reverse gear
12 5034805 Shim 60x66x0.7mm reverse gear
12 5034806 Shim 60x66x0.75mm reverse gear
12 5034807 Shim 60x66x0.8mm reverse gear
12 5034808 Shim 60x66x0.85mm reverse gear
12 5034809 Shim 60x66x0.9mm reverse gear
13 5034819 Shim 75x100x0.5mm forward gear
13 5036124 Shim 75x100x0.55mm new for 2005
13 5034814 Shim 75x100x0.6mm forward gear
13 5034815 Shim 75x100x0.65mm forward gear
13 5034810 Shim 75x100x0.7mm forward gear
13 5034816 Shim 75x100x0.75mm forward gear
13 5034811 Shim 75x100x0.8mm forward gear
13 5034817 Shim 75x100x0.85mm forward gear
13 5034812 Shim 75x100x0.9mm forward gear
13 5034818 Shim 75x100x0.95mm forward gear
13 5034813 Shim 75x100x1.0mm forward gear
14 5034826 Bearing, fwd gear
15 5035493 Shaft, propeller
16 5035161 Shifter, clutch dog
17 5035286 Pin, clutch dog shifter
18 5035162 Pin, connector
19 5035366 Spring, clutch dog shifter
20 5034843 Spring
21 5035652 Ball, detent no.1
22 5035653 Ball, detent no.2
23 5035494 Spacer, fwd thrust
24 5034089 Washer 30x47x6.0mm
25 5034090 Washer 32x47x3.0mm
26 5034094 Bearing 30x47x2.0mm
27 5035489 Housing, prop sft brg
28 5035302 Bearing
29 5034827 O ring
30 5035310 Oil seal
30A 5036125 Circlip new for 2005
31 5031212 Bolt
32 5035153 Housing, drive shaft brg
33 5034830 O ring
34 5033612 Oil seal
35 5035490 Housing, rev gear brg
