EVINRUDE-JOHNSON 5035702 Bushing, Fuel Pump

Write a Review
$20.99
SKU:
5035702
Schematic Object Key:
25

EVINRUDE-JOHNSON 5035702 Bushing, Fuel Pump

$20.99

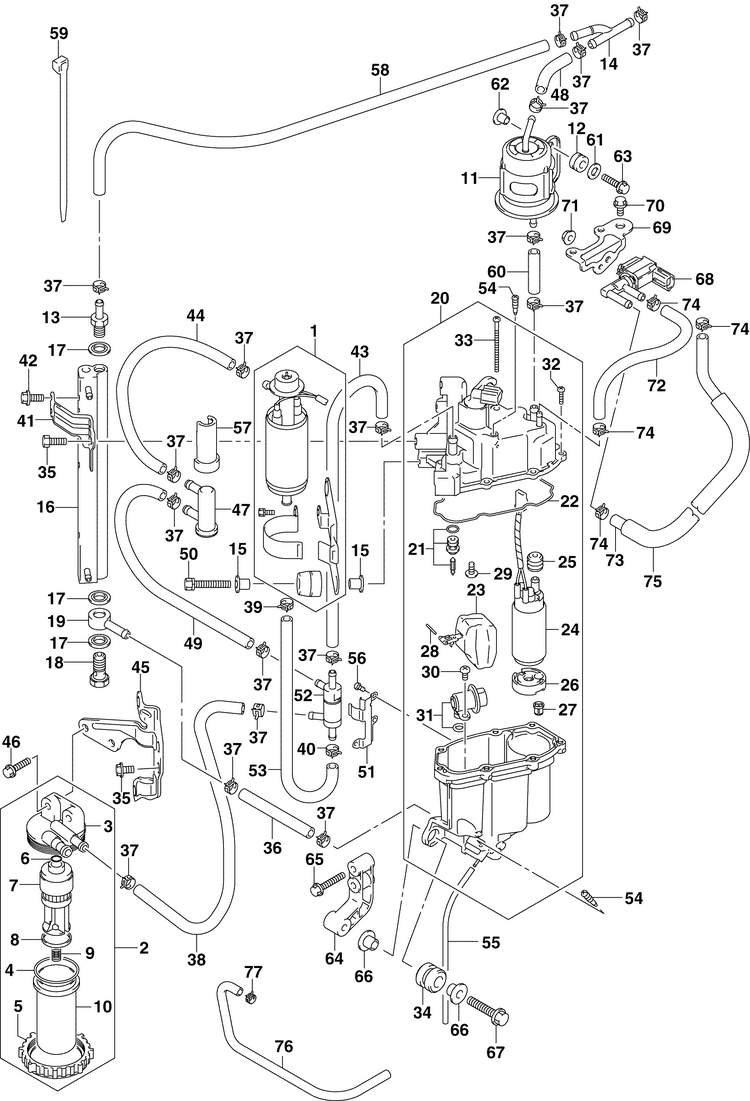

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5035702 Bushing, Fuel Pump

Schematic Object Key : 25

Product Description: Bushing, Fuel Pump

Category: JOHNSON / 2005 / 200 / BJ200PX4SO / FUEL PUMP & VAPOR SEPARATOR

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5035394 Pump assy, fuel low pressure
2 5034984 Filter, fuel low pressure
3 5035694 Cap, filter
4 5035698 O ring, no.1
5 5035697 Nut, filter
6 5035699 O ring, no.2
7 5035695 Filter, fuel
8 5035700 Float, filter
9 5035701 Spring, filter
10 5035696 Cup, filter
11 5034985 Filter, fuel epi
12 5030555 Cushion
13 5033538 Union, fuel hose
14 5035016 Union,3 way
15 5030471 Spacer
16 5035015 Cooler, fuel
17 5030466 Gasket
18 5030567 Bolt
19 5030569 Union
20 5036636 Separator assy,. This part replaces 5034986.
21 5034968 Valve assy, needle
22 5034987 Gasket, separator
23 5034999 Float assy
24 5036635 Pump assy, fuel high pressure This part replaces 5034983.
25 5035702 Bushing, fuel pump
26 5034147 Spacer
27 5034148 Filter
28 5032220 Pin
29 5035647 Screw
30 5035643 Screw, regulator
31 5035013 Regulator, fuel pressure
32 5031110 Screw
32 5031110 Screw
33 5034988 Screw
34 5034837 Cushion, fuel vapor separator
35 5035004 Bolt, cooler bracket
36 0772572 Hose, exhaust pressure inlet cut to length from p n 5030566 This part replaces 5030566.
37 5030579 Clamp
38 5034993 Hose, fuel low pressure
39 5035009 Clip
40 5035008 Clip
41 5035001 Bracket, fuel cooler
42 5035633 Bolt, fuel cooler
43 5034992 Hose, fuel high pressure
44 5034989 Hose, fuel high pressure
45 5035002 Bracket, fuel filter
46 5030990 Bolt
47 5034995 Filter, fuel low pressure
48 0772572 Hose, exhaust pressure inlet cut to length from p n 5030566 This part replaces 5030566.
49 5034991 Hose, fuel high pressure
50 5034172 Bolt
51 5035003 Bracket, check valve
52 5034997 Valve, check
53 5034994 Hose, fuel low pressure
54 5031111 Screw, drain
55 5031648 Hose, drain
56 5035642 Screw
57 5034996 Cover, fuel filter
58 5034990 Hose, fuel high pressure cut to length from p n 5030566
59 5034998 Clamp, fuel filter
60 0772572 Hose, exhaust pressure inlet This part replaces 5030566.
61 5030056 Washer
62 5030471 Spacer
63 5030990 Bolt
64 5035000 Bracket, vapor separator
65 5030002 Bolt
66 5031866 Washer
67 5030998 Bolt
68 5035411 Valve assy, evap purge
69 5035057 Bracket, purge valve
70 5030988 Bolt, rectifier regula
71 5030018 Nut
72 5031274 Hose 140mm cut to length from p n 5031274
73 5031274 Hose 140mm cut to length from p n 5031274
74 5031278 Clamp
75 5032235 Protector 280mm
76 5035006 Bracket, throttle cable
77 5035341 Clip
