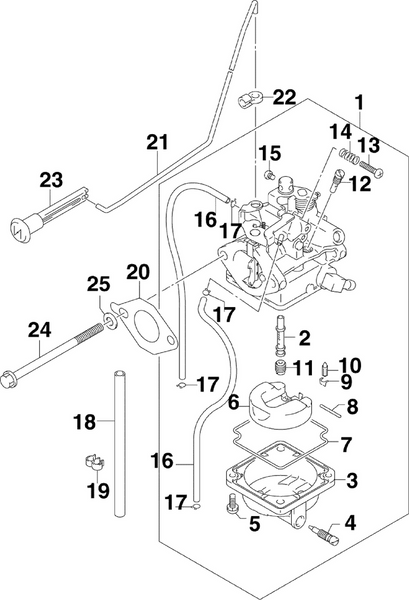

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 17
Product Description: Clip
Category: JOHNSON / 2006 / 5 / J5R4SDA / CARBURETOR
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5036192 | Carburetor 5hp | |
2 | 5036194 | Nozzle, main 4 5hp | |
3 | 5036195 | Chamber, float | |
4 | 5036203 | Screw, drain | |
5 | 5036196 | Screw | |
6 | 5036197 | Float | |
7 | 5036198 | Gasket, float chamber | |
8 | 5036199 | Pin, float | |
9 | 5036205 | Clip | |
10 | 5036204 | Valve, float | |
11 | 5036163 | Jet, main 70 4 5hp | |
12 | 5036165 | Jet, pilot 35 4 5hp | |
13 | 5036208 | Screw, throttle stop | |
14 | 5036200 | Spring | |
15 | 5036209 | Screw | |
16 | 5036202 | Hose, air vent | |
17 | 5036201 | Clip | |
18 | 5036157 | Protector | |
19 | 5036161 | Clamp | |
20 | 5036188 | Gasket, carburetor | |
21 | 5036206 | Rod, choke | |
22 | 5033367 | Connector, choke rod | |
23 | 5033368 | Knob, choke | |
24 | 5036550 | Bolt | |
25 | 5030023 | Washer |
