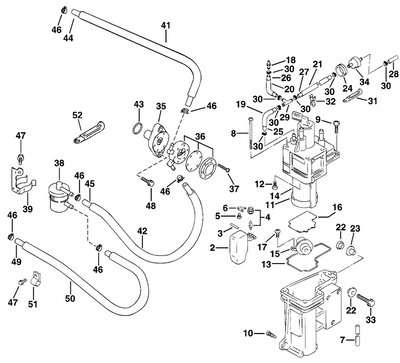

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 8A
Product Description: Hose, Drain
Category: JOHNSON / 2006 / 70 / BJ70PL4SDM / FUEL VAPOR SEPARATOR
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 5036715 | Separator, fuel vapor | |
| 2 | 5031105 | Valve, needle | |
| 3 | 5031107 | Plate | |
| 4 | 5032617 | Pump | |
| 5 | 5031114 | O ring | |
| 6 | 5031109 | Screw | |
| 7 | 5031110 | Screw | |
| 8 | 5036716 | Body, drain | |
| 8A | 5036717 | Hose, drain | |
| 8B | 5036718 | Clip | |
| 9 | 5031112 | Filter, fuel pump | |
| 10 | 5032906 | Plate | |
| 11 | 5032219 | Float | |
| 12 | 5032220 | Pin | |
| 13 | 5031650 | Regulator | |
| 14 | 5031106 | Screw | |
| 15 | 5031113 | Screw | This part replaces 5031652. |
| 15A | 5036693 | Cover, separator | |
| 15B | 5036694 | O ring | |
| 15C | 5036695 | Screw | |
| 16 | 5032235 | Protector 280mm cut to length from bulk roll | |
| 17 | 5032235 | Protector 280mm cut to length from bulk roll | |
| 18 | 5032235 | Protector 280mm cut to length from bulk roll | |
| 19 | 5032235 | Protector 280mm cut to length from bulk roll | |
| 21 | 5030556 | Cushion | |
| 21B | 5033598 | Washer | |
| 22 | 5031703 | Grommet | |
| 23 | 5031274 | Hose 140mm cut to length from bulk roll | |
| 24 | 5031274 | Hose 140mm cut to length from bulk roll | |
| 25 | 5031274 | Hose 140mm cut to length from bulk roll | |
| 26 | 5032884 | Hose 810mm cut to length from bulk roll | |
| 27 | 5030127 | 3 way | |
| 28 | 5031278 | Clamp | |
| 29 | 5032890 | Clamp | |
| 30 | 5036601 | Bolt | |
| 31 | 5032238 | Filter | |
| 32 | 5031811 | Jet, evaparator hose optional. | |
| 33 | 5031806 | Jet, evaparator hose optional. | |
| 34 | 5036719 | Clamp | |
| 35 | 5030989 | Bolt |
