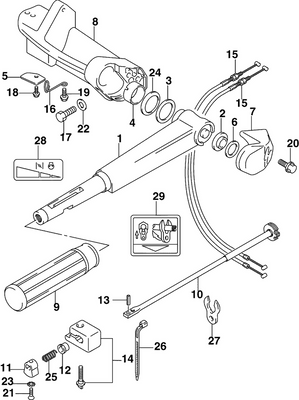

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 1
Product Description: Handle, Tiller (White)
Category: JOHNSON / 2006 / 25 / J25TE4SDC / TILLER ARM
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5037068 | Handle, tiller white | |
2 | 5032137 | Spacer, handle cover | |
3 | 5032138 | Bushing, tiller handle | |
4 | 5032139 | Spacer, handle cover inside | |
5 | 5032141 | Shim, tiller handle | |
6 | 5037069 | Cover, tiller handle white | |
7 | 5037070 | Protector, handle cover | |
8 | 5037071 | Bracket, tiller handle white | |
9 | 5030315 | Grip | |
10 | 5032144 | Rod | |
11 | 5032145 | Stopper, handle rod | |
12 | 5031577 | Bush, handle rod | |
13 | 5031578 | Pin | |
14 | 5032146 | Adjuster, handle grip | |
15 | 5037072 | Cable, throttle | |
16 | 5032668 | Bolt | |
17 | 5034400 | Bolt 8x22 | |
18 | 5037073 | Screw 5x10 | |
19 | *5030049 | Screw 6x23mm | |
20 | 5031832 | Washer | |
21 | *5031794 | Washer | |
22 | 5031859 | Wave washer | |
23 | *5031795 | Spring | |
24 | 5034182 | Tube | |
25 | 5036988 | Switch assy, emergency | |
26 | 5030063 | Washer | |
27 | 5030226 | Label, stop | |
28 | 5037075 | Decal, handle grip |
