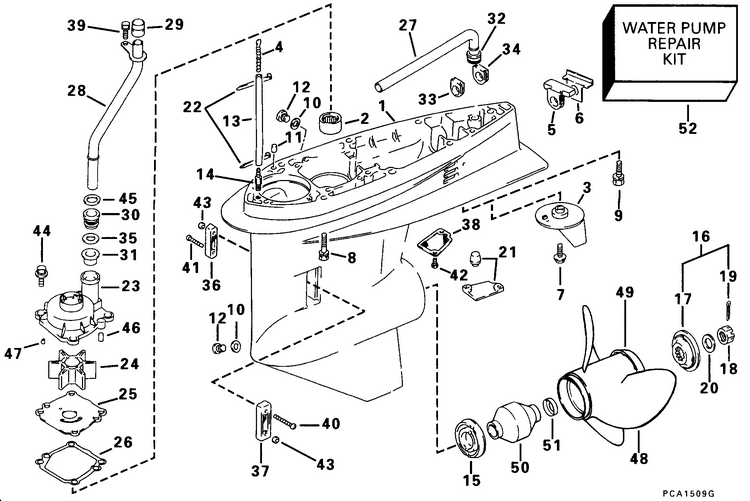

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 25
Replacement: This part (5037170) replaces 5030724.
Product Description: Panel
Category: EVINRUDE / 1998 / 70 / E70FTLECS 1998 / GEARCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 5030903 | Gearcase, jo. | |
| 1 | 5030904 | Gearcase | |
| 2 | 5030530 | Bearing, pinion w | |
| 3 | 5030905 | Trim tab | |
| 4 | 5030906 | Union, speedometer hose | |
| 5 | 5030908 | Grommet, exhaust seal | |
| 6 | 5030909 | Plate, exhaust seal | |
| 7 | 5034400 | Bolt 8x22 | This part replaces 5030395. |
| 8 | 5034788 | Bolt | This part replaces 5030400. |
| 9 | 5030401 | Bolt | |
| 10 | 5030071 | Gasket | |
| 11 | 5030511 | Pin | |
| 12 | 5030094 | Bolt 10x7.5mm | |
| 13 | HOSE, Speedometer, 2 3/4 in. (70mm) | ||
| 14 | 5030568 | Fitting | |
| 15 | 5030924 | Thrust bushing, propeller | |
| 16 | 5030976 | Propeller nut assy. | |
| 17 | 5030925 | Spacer | |
| 18 | 5030422 | Nut | |
| 19 | 5030087 | Cotter pin | |
| 20 | 5030441 | Spacer washer | |
| 21 | 5032685 | Plug | This part replaces 5030972. |
| 22 | 5030589 | Clamp l 125mm | |
| 23 | 5030722 | Case, water pump | |
| 24 | 5030723 | Impeller assy. | |
| 25 | 5037170 | Panel | This part replaces 5030724. |
| 26 | 5030725 | Gasket, pump case panel | |
| 27 | 5031138 | Tube, gearcase | |
| 28 | 5030726 | Tube, water | |
| 29 | 5030727 | Bushing, water tube upper | |
| 30 | 5030728 | Bushing | |
| 31 | 5030729 | Bushing | |
| 32 | 5031100 | Bushing, gearcase | |
| 33 | 5031101 | Grommet, gearcase | |
| 34 | 5031102 | Grommet, gearcase | |
| 35 | 5030735 | Spacer, water tube | |
| 36 | 5030737 | Screen, water intake, port | |
| 37 | 5030738 | Screen, water intake, stbd. | |
| 38 | 5030739 | Filter, sub water | |
| 39 | 5030038 | Bolt | |
| 40 | 5030404 | Screw, screen, upper | |
| 41 | 5030405 | Screw, screen, lower | |
| 42 | 5030406 | Screw | |
| 43 | 5030415 | Nut | |
| 44 | 5030398 | Bolt | |
| 45 | 5030461 | Washer | |
| 46 | 5030508 | Pin | |
| 47 | 5030591 | Key | |
| 48 | PROPELLER | ||
| 49 | 0332393 | Converging ring | |
| 50 | 0384977 | Bushing assy, prop, 3 blade | |
| 51 | 0313926 | Propeller hub sleeve | |
| 52 | 5031731 | Water pump repair kit includes 5031724 connec tor pin | This part replaces 5030971. |
