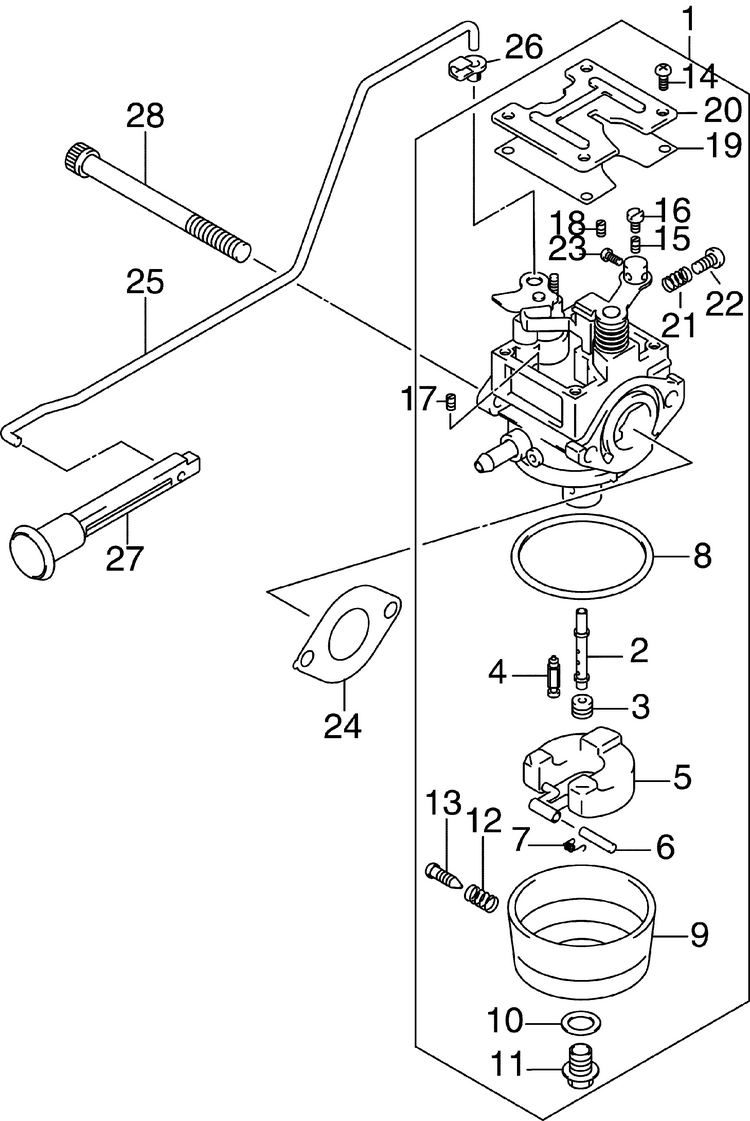

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 16
Product Description: Screw
Category: JOHNSON / 2007 / 2.5 / J2R4SUC / CARBURETOR
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5037226 | Carburetor | |
2 | 5037227 | Nozzle, main | |
3 | 5037228 | Jet, main 68 | |
3 | 5037229 | Jet, main 70 | |
3 | 5037230 | Jet, main 72 | |
4 | 5037231 | Valve, needle | |
5 | 5037232 | Float | |
6 | 5037233 | Pin, float | |
7 | 5037234 | Spring | |
8 | 5037235 | Gasket | |
9 | 5037236 | Chamber, float | |
10 | 5037237 | Gasket | |
11 | 5037238 | Screw | |
12 | 5037239 | Spring | |
13 | 5037240 | Screw | |
14 | 5037241 | Screw | |
15 | 5037242 | Jet, pilot 30 | |
15 | 5037243 | Jet, pilot 32 | |
15 | 5037244 | Jet, pilot 34 | |
16 | 5037245 | Screw | |
17 | 5037246 | Jet, air 170 | |
18 | 5037247 | Jet, pilot air 145 | |
19 | 5037248 | Gasket | |
20 | 5037249 | Plate | |
21 | 5037250 | Spring | |
22 | 5037251 | Screw | |
23 | 5037252 | Screw | |
24 | 5037253 | Gasket, carburetor | |
25 | 5037254 | Rod, choke | |
26 | 5033367 | Connector, choke rod | |
27 | 5033368 | Knob, choke | |
28 | 5037255 | Bolt |
