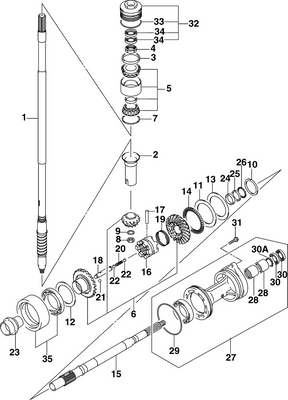

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 1
Product Description: Shaft, Drive
Category: JOHNSON / 2007 / 2.5 / J2R4SUC / GEARS
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5037321 | Shaft, drive | |
2 | 5033431 | Bushing, drive shaft | |
3 | 5037322 | Pinion | |
4 | 5037323 | Shim 10x16x1.8 | |
4 | 5037324 | Shim 10x16x1.9 | |
4 | 5037325 | Shim 10x16x2.0 | |
4 | 5037326 | Shim 10x16x2.1 | |
4 | 5037327 | Shim 10x16x2.2 | |
5 | 5037328 | E ring, pinion | |
6 | 5037329 | Gear, forward | |
7 | 5037330 | Shim 17x23x0.3 | |
7 | 5037331 | Shim 17x23x0.4 | |
7 | 5037332 | Shim 17x23x0.5 | |
7 | 5037333 | Shim 17x23x0.6 | |
8 | 5037334 | Shaft, propeller | |
9 | 5037337 | Rod, push | This part replaces 5037335. |
10 | 5037336 | Spring, return | |
11 | 5034139 | Circlip | |
12 | 5037337 | Rod, push | |
13 | 5037338 | Washer, 10x14x1.6 | |
13 | 5037339 | Washer, 10x14x1.7 | |
13 | 5037323 | Shim 10x16x1.8 | |
13 | 5037324 | Shim 10x16x1.9 | |
13 | 5037325 | Shim 10x16x2.0 |
