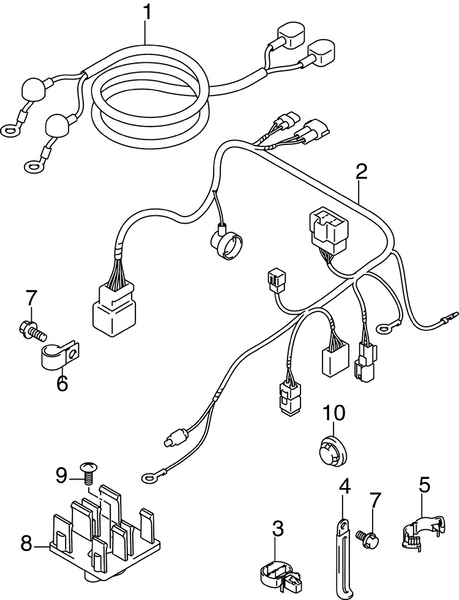

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 8
Replacement: This part (5037469) replaces 5036996.
Product Description: Holder, Connector | Remote Models
Category: JOHNSON / 2006 / 25 / J25RL4SDC / ENGINE ELECTRICAL HARNESS
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5036993 | Cable assy, battery electric start models | |
2 | 5036994 | Harness assy, start tel models | |
2 | 5037161 | Harness assy, wiring rope models | |
2 | 5037162 | Harness assy, wiring remote models | |
3 | 5036995 | Clamp | |
4 | 5030135 | Clamp, rect reg lead tel models | |
4 | 5030135 | Clamp, rect reg lead rope models | |
4 | 5030135 | Clamp, rect reg lead remote models | |
5 | 5031905 | Clamp | |
6 | 5031902 | Clamp | |
7 | 5030988 | Bolt, rectifier regula | |
7 | 5030988 | Bolt, rectifier regula | |
7 | 5030988 | Bolt, rectifier regula | |
8 | 5037469 | Holder, connector remote models | This part replaces 5036996. |
9 | 5031690 | Screw remote models | |
10 | 5036997 | Cap, warning lamp hole remote models |
