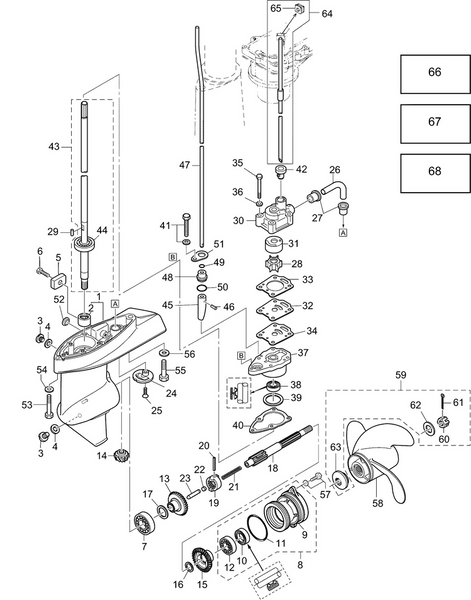

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 22
Product Description: Spring Retainer Clutch
Category: EVINRUDE / AA Models / 4 PORTABLE / B4RL4AAA / 17-1_GEARCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
– | 5040231 | Gearcase, complete 15 in. models | |
– | 5040232 | Gearcase, complete 20 in. models | |
1 | 5040226 | Gearcase housing 15 in. models | |
2 | 5040145 | Roller bearing 14 20 12 | |
3 | 5040029 | Plug | |
4 | 5040030 | Gasket 8.1 15 1 | |
5 | 5041015 | Anode | |
6 | 5041524 | Bolt | |
7 | 5041703 | Ball bearing 6004 | |
8 | 5040233 | Propeller shaft housing assembly | |
9 | 5040227 | Propeller shaft housing | |
10 | 5040143 | Oil seal 15 28 10 | |
11 | 5040061 | O ring 3.2 47 | |
12 | 5041702 | Ball bearing 6002 | |
13 | 5040155 | Bevel gear ass'y a | |
14 | 5040158 | Bevel gear b | |
15 | 5040159 | Bevel gear assembly c | |
16 | 5040160 | Washer 15.2 19 1.9 | |
17 | 5040156 | Shim 21 28 0.1 | |
17 | 5040156 | Shim 21 28 0.1 | This part replaces 5040157. |
18 | 5040166 | Propeller shaft | |
19 | 5040007 | Clutch | |
20 | 5040008 | Pin 3.5 28 | |
21 | 5040236 | Spring clutch | |
22 | 5040167 | Spring retainer clutch | |
23 | 5040168 | Push rod clutch | |
24 | 5040144 | Water strainer | |
25 | 5041638 | Screw | |
26 | 5040184 | Water pipe lower | |
27 | 5040185 | Seal rubber water pipe lower | |
28 | 5040180 | Water pump impeller | |
29 | 5040181 | Key pump impeller | |
30 | 5040176 | Pump case upper | |
31 | 5040174 | Pump case liner | |
32 | 5040182 | Water pump guide plate | |
33 | 5040178 | Pump case gasket | |
34 | 5040183 | Guide plate gasket | |
35 | 5041584 | Bolt | |
36 | 5041661 | Washer | |
37 | 5040177 | Pump case lower | |
38 | 5040147 | Oil seal 10 24 8 | |
39 | 5040161 | Shim 28 34.8 0.1 | |
39 | 5040161 | Shim 28 34.8 0.1 | This part replaces 5040162. |
40 | 5040179 | Pump case gasket lower | |
41 | 5041534 | Bolt | |
42 | 5040175 | Water pipe seal lower | |
43 | 5040169 | Drive shaft 15 in. models | |
43 | 5040170 | Drive shaft 20 in. models | |
43 | 5040171 | Drive shaft 25 in. models | |
44 | 5041705 | Ball bearing 6300 | |
45 | 5040191 | Clutch cam | |
46 | 5041691 | Spring pin 3 10 | |
47 | 5040192 | Cam rod 15 in. models | |
47 | 5040193 | Cam rod 20 in. models | |
47 | 5040194 | Cam rod 25 in. models | |
48 | 5040196 | Cam rod bushing | |
49 | 5040195 | O ring a 2.5 4.9 | |
50 | 5040036 | O ring 2.4 15.4 | |
51 | 5040197 | Stopper com rod bushing | |
52 | Not used on BRP engine models | ||
53 | 5041584 | Bolt | |
54 | 5041668 | Washer | |
55 | 5041587 | Bolt | |
56 | 5041669 | Washer | |
57 | 5041559 | Bolt | |
58 | 0766540 | Propeller aluminum 3 blade, 7.8 in. diameter x 7 in pitch | |
58 | 0766541 | Propeller aluminum 3 blade, 7.8 in. diameter x 8 in pitch | |
58 | 0766542 | Propeller aluminum 3 blade, 7.8 in. diameter x 9 in pitch | |
59 | 5041052 | Propeller hardware kit | |
60 | 5040164 | Propeller nut | |
61 | 5041695 | Split pin 3 18 | |
62 | 5040165 | Washer 10.5 28 2 | |
63 | 5040497 | Bushing, thrust | |
64 | 5040186 | Water pipe 15 in. models | |
64 | 5040187 | Water pipe 20 in. models | |
64 | 5040188 | Water pipe 25 in. models | |
65 | 5040189 | Grommet water pipe | |
66 | 5040224 | Water pump repair kit | |
67 | 5040190 | Water pump kit chrome plated | |
68 | 5040223 | Lower unit gasket set |
