Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 48
Product Description: O-Ring A 2.5-4.9

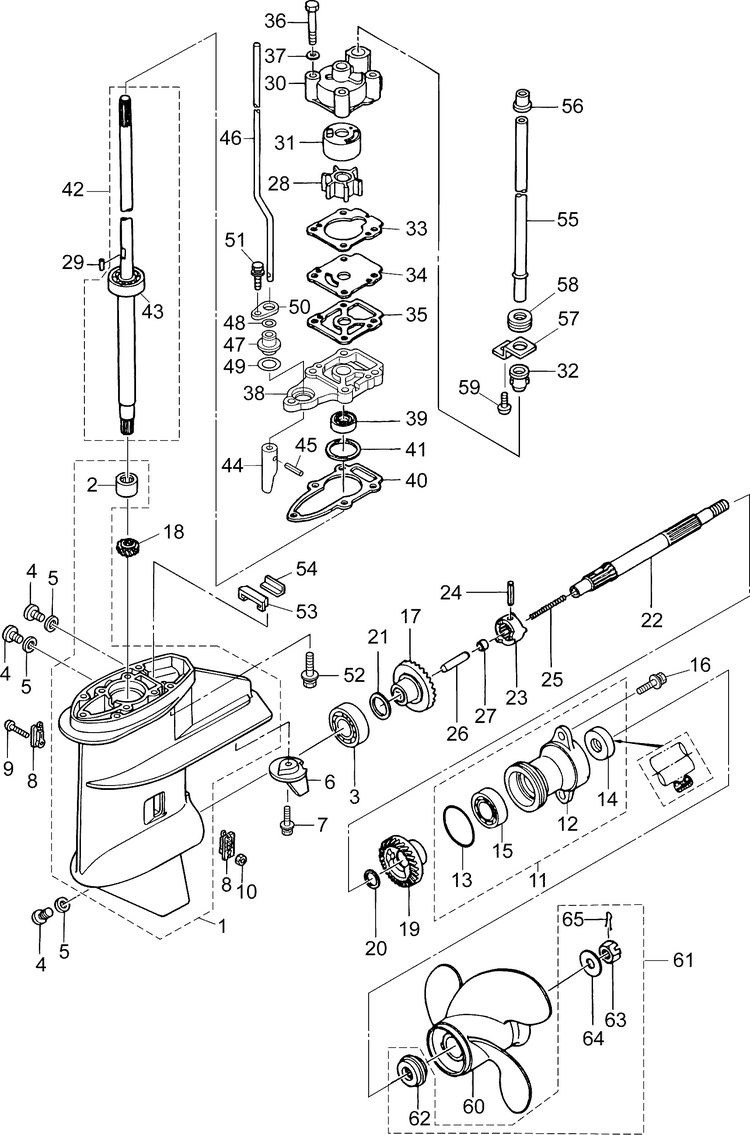

Category: EVINRUDE / AB Models / 9.8 PORTABLE / B10RGL4ABA / 17-1_GEARCASE ASSEMBLY
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
– | 5041902 | Gearcase, complete 15 in. shaft | |
– | 5041903 | Gearcase, complete 20 in. shaft | |
– | 5041918 | Gearcase, complete 25 in. shaft | |
1 | 5041824 | Gearcase housing | |
2 | 5041324 | Roller bearing | |
3 | 5041704 | Ball bearing 6204 | |
4 | 5040029 | Plug | |
5 | 5040030 | Gasket 8.1 15 1 | |
6 | 5041325 | Trim tab | |
7 | 5041533 | Bolt | |
8 | 5040316 | Water strainer w 17 mark a | |
9 | 5041606 | Screw | |
10 | 5041653 | Nylon nut | |
11 | 5041839 | Propeller shaft housing assembly graphite | |
12 | 5041840 | Propeller shaft housing | |
13 | 5040061 | O ring 3.2 47 | |
14 | 5040143 | Oil seal 15 28 10 | |
15 | 5041703 | Ball bearing 6004 | |
16 | 5041560 | Bolt | |
17 | 5040511 | Bevel gear assembly a | |
18 | 5040512 | Bevel gear b | |
19 | 5040513 | Bevel gear c | |
20 | 5040160 | Washer 15.2 19 1.9 | |
21 | 5040156 | Shim 21 28 0.1 | |
21 | 5040156 | Shim 21 28 0.1 | This part replaces 5040157. |
22 | 5041349 | Propeller shaft | |
23 | 5040518 | Clutch | |
24 | 5040008 | Pin 3.5 28 | |
25 | 5041350 | Spring clutch | |
26 | 5040168 | Push rod clutch | |
27 | 5040519 | Spring retainer clutch | |
28 | 5040525 | Water pump impeller | |
29 | 5040526 | Key pump impeller | |
30 | 5040522 | Pump case upper | |
31 | 5040521 | Pump case liner | |
32 | 5040027 | Water pipe seal lower | |
33 | 5040523 | Pump case gasket | |
34 | 5040527 | Water pump guide plate | |
35 | 5040528 | Guide plate gasket | |
36 | 5041585 | Bolt | |
37 | 5041668 | Washer | |
38 | 5041356 | Pump case lower | |
39 | 5040015 | Oil seal 12 24 8 | |
40 | 5040524 | Pump case gasket lower | |
41 | 5040514 | Shim 28 36.8 0.1 | |
41 | 5040515 | Shim 28 36.8 0.15 | |
41 | 5040516 | Shim 28 36.8 0.3 | |
42 | 5041351 | Drive shaft assembly 15 in. shaft | |
42 | 5041352 | Drive shaft assembly 20 in. shaft | |
42 | 5041353 | Drive shaft assembly 25 in. shaft | |
43 | 5041706 | Ball bearing 6301 | |
44 | 5040191 | Clutch cam | |
45 | 5041691 | Spring pin 3 10 | |
46 | 5041363 | Cam rod 15 in. shaft | |
46 | 5041364 | Cam rod 20 in. shaft | |
46 | 5041365 | Cam rod 25 in. shaft | |
47 | 5040196 | Cam rod bushing | |
48 | 5040195 | O ring a 2.5 4.9 | |
49 | 5040036 | O ring 2.4 15.4 | |
50 | 5040197 | Stopper com rod bushing | |
51 | 5041561 | Bolt | |
52 | 5041442 | Bolt | |
53 | 5041321 | Water seal rubber | |
54 | 5041322 | Water seal plate | |
55 | 5041357 | Water pipe 15 in. shaft | |
55 | 5041358 | Water pipe 20 in. shaft | |
55 | 5041359 | Water pipe 25 in. shaft | |
56 | 5041362 | Water pipe seal upper | |
57 | 5041360 | Lock plate | |
58 | 5041361 | Water pipe auxiliary mount 13 2.5 | |
59 | 5041626 | Screw el, pl, px | |
60 | 0766543 | Propeller 3 blade, 8.5 in. diameter x 7 in pitch | |
60 | 0766544 | Propeller assembly 3 blade, 8.5 in. diameter x 8 in pitch | |
60 | 0766545 | Propeller assembly 3 blade, 8.5 in. diameter x 9 in pitch | |
61 | 5041399 | Propeller hardware kit | |
62 | 5040520 | Thrust holder assembly | |
63 | 5040164 | Propeller nut | |
64 | 5040165 | Washer 10.5 28 2 | |
65 | 5041695 | Split pin 3 18 | |
NS | 5040536 | Lower unit gasket set | |
NS | 5040537 | Water pump repair kit | |
NS | 5040529 | Water pump kit chrome plated | |
NS | 5041904 | Extension housing kit convert 20 in to 25 in |
