EVINRUDE-JOHNSON 5040235 Bushing Tilt Stopper

Write a Review
$7.23
SKU:
5040235
Schematic Object Key:
51

EVINRUDE-JOHNSON 5040235 Bushing Tilt Stopper

$7.23

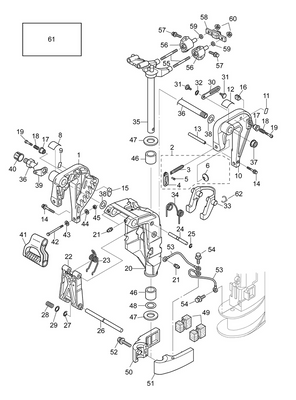

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5040235 Bushing Tilt Stopper

Schematic Object Key : 51

Product Description: Bushing Tilt Stopper

Category: EVINRUDE / AA Models / 9.8 PORTABLE / E10RL4AAB & AAC / 16-4_STERN & SWIVEL BRACKET (R, TE MODELS)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5041418 Clamp bracket starboard
2 5041416 Clamp screw kit
3 5041334 Clamp screw
4 5040045 Clamp screw handle
5 5040769 Rivet 3 22
6 5040033 Clamp screw pad
7 5040770 Shoulder bolt
8 5041419 Clamp bracket port
9 5040016 Bolt 8 122
10 5041655 Nylon nut
11 5041669 Washer
12 5040011 Washer 8.5 28 1
13 5040507 Distance plate bracket
14 5041636 Screw
15 5040151 Stern bracket spring
16 5041637 Screw
17 5040152 Washer 4.3 16 1.5
18 5040090 Thrust rod
19 5040150 Thrust rod spring
20 5041420 Swivel bracket
21 5040055 Grease fitting
22 5040060 Friction piece
23 5040071 Friction spring
24 5041553 Bolt
25 5041377 Reverse lock
26 5041376 Reverse lock arm
27 5040531 Reverse lock rod
28 5041681 E ring
29 5040530 Reverse lock spring
30 5041375 Reverse lock link
31 5040772 Rod snap 5 3
32 5041118 Rod snap 4 2
33 5041415 Steering shaft assembly
34 5041330 Stud
35 5040092 Bushing 24 30 30
36 5040093 Thrust plate upper
37 5040091 O ring 3.5 22
38 5041405 Rubber mount upper
39 5041573 Bolt
40 5041332 Damper upper
41 5041669 Washer
42 5041331 Nut flange
43 5041329 Rubber mount lower
44 5041412 Mount bracket starboard
45 5041413 Mount bracket port
46 5041566 Bolt
47 5040252 Ground l 110 drive shaft housing mount bracket
47 5040252 Ground l 110 swivel bracket mount bracket
48 5041557 Bolt
49 5041335 Tilt stopper assembly
50 5040496 Tilt stopper grip
51 5040235 Bushing tilt stopper
52 5040154 Setting plate tilt stopper
53 5041557 Bolt
54 5041382 Rigging bolt set standard size
