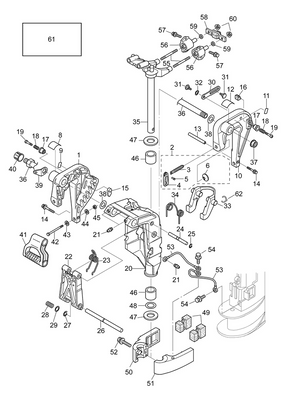

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 46
Product Description: Plate Co-Pilot | Tpl Models
Category: EVINRUDE / AB Models / 9.8 PORTABLE / E10TPL4ABB / 16-4_STERN & SWIVEL BRACKET (PGL, TPL, MODELS)
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5041910 | Clamp bracket starboard | |
2 | 5041911 | Clamp bracket port | |
3 | 5041868 | Clamp screw kit | |
4 | 5040803 | Clamp screw | |
5 | 5041815 | Clamp screw handle | |
6 | 5040769 | Rivet 3 22 | |
7 | 5040033 | Clamp screw pad | |
8 | 5040770 | Shoulder bolt | |
9 | 5041501 | Trim lock pin | |
10 | 5041138 | Washer 8.1 16 1.5 | |
11 | 5041458 | Nylon nut | |
12 | 5041015 | Anode | |
13 | 5041532 | Bolt | |
14 | 5040243 | Ground l 130 | |
15 | 5041557 | Bolt | This part replaces 5041530. |
16 | 5041901 | Swivel bracket assembly | |
17 | 5041494 | Tilt stopper | |
18 | 5040153 | Tilt stopper grip | |
19 | 5040110 | Collar 10.2 12 12 | |
20 | 5041670 | Washer | |
21 | 5041689 | Spring pin | |
22 | 5041146 | Tilt stopper spring | |
23 | 5041495 | Friction piece | |
24 | 5041493 | Bushing 24 30 30 | |
25 | 5040092 | Bushing 24 30 30 | |
26 | 5041909 | Power tilit hydraulic assembly | |
27 | 5041152 | Cylinder pin upper | |
28 | 5041499 | Bushing 13 16 31 | |
29 | 5041153 | Bushing 13 17 19.5 | |
30 | 5041546 | Bolt | |
31 | 5040057 | Washer 6.5 23 1.5 | |
32 | 5041500 | Cylinder pin lower | |
33 | 5041499 | Bushing 13 16 31 | |
34 | 5040011 | Washer 8.5 28 1 | |
35 | 5041552 | Bolt | |
36 | 5041515 | Band lead wire 203 | |
37 | 5041555 | Bolt | |
38 | 5041669 | Washer | |
39 | 5041492 | Washer | |
40 | 5041655 | Nylon nut | |
41 | 5040325 | Friction lever tpl models | |
42 | 5041212 | Washer 8.1 20 0.8 tpl models | |
43 | 5041213 | Bolt co pilot tpl models | |
44 | 5041655 | Nylon nut tpl models | |
45 | 5041669 | Washer tpl models | |
46 | 5040326 | Plate co pilot tpl models | |
47 | 5041559 | Bolt tpl models | |
48 | 5041215 | Washer co pilot tpl models | |
49 | 5041216 | Disc co pilot tpl models | |
51 | 5040093 | Thrust plate upper | |
52 | 5040091 | O ring 3.5 22 | |
53 | 5041329 | Rubber mount lower | |
54 | 5041888 | Mount bracket starboard | |
55 | 5041889 | Mount bracket port | |
56 | 5041566 | Bolt | |
57 | 5040252 | Ground l 110 drive shaft housing mount bracket | |
58 | 5041557 | Bolt | |
59 | 5041330 | Stud | |
60 | 5041405 | Rubber mount upper | |
61 | 5041573 | Bolt | |
62 | 5041669 | Washer | |
63 | 5041331 | Nut flange | |
64 | 5040317 | Carrying handle | |
65 | 5040071 | Friction spring | |
66 | 5041553 | Bolt | |
67 | 5041825 | Steering shaft assembly | |
68 | 5040320 | Washer 22 36 1 nylon | |
69 | 5040457 | Swivel bracket shaft assembly bracket bolt | |
70 | 5040319 | Plate | |
71 | 5040070 | Cap nut bracket bolt tpl models | |
72 | 5040069 | Nylon nut 7 8 | |
73 | 5040055 | Grease fitting | |
74 | 5041450 | Rigging bolt set tpl models |
