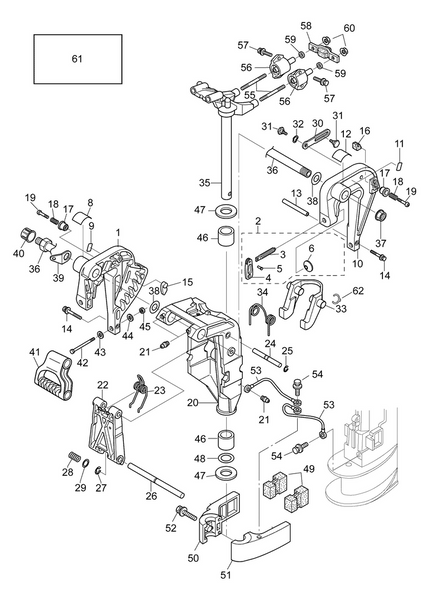

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 28
Product Description: Spring
Category: EVINRUDE / AB Models / 9.8 PORTABLE / B10EGL4ABB / 16-4_STERN & SWIVEL BRACKET (EGL MODELS)
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 5040360 | Clamp bracket starboard | |
| 2 | 5040358 | Clamp screw kit | |
| 3 | 5040318 | Clamp screw | |
| 4 | 5040045 | Clamp screw handle | |
| 5 | 5040769 | Rivet 3 22 | |
| 6 | 5040033 | Clamp screw pad | |
| 7 | 5040770 | Shoulder bolt | |
| 8 | 5040354 | Trim position decal | |
| 9 | 5040341 | Lower tilt limit decal | |
| 10 | 5040361 | Clamp bracket port | |
| 11 | 5040340 | Tilt lock decal | |
| 12 | 5040342 | Co pilot decal tpl, tpx | |
| 13 | 5040321 | Spacer | |
| 14 | 5041564 | Bolt | |
| 15 | 5040322 | Trim setting plate | |
| 16 | 5040323 | Tilt lock piece | |
| 17 | 5040329 | Knob | |
| 18 | 5041475 | Spring, tilt lock knob | |
| 19 | 5041611 | Screw | |
| 20 | 5040362 | Swivel bracket | |
| 21 | 5040055 | Grease fitting | |
| 22 | 5040330 | Tilt stopper body | |
| 23 | 5040324 | Spring | |
| 24 | 5040331 | Tilt stopper shaft upper | |
| 25 | 5041682 | E ring d 6 | |
| 26 | 5040332 | Tilt stopper shaft lower | |
| 27 | 5041683 | E ring d 9 | |
| 28 | 5040333 | Spring | |
| 29 | 5040032 | Washer 10.5 18 1.5 | |
| 30 | 5040328 | Tilt stopper port | |
| 31 | 5040327 | Bolt | |
| 32 | 5041679 | Wave washer d 10 | |
| 33 | 5040337 | Reverse lock | |
| 34 | 5040336 | Reverse lock spring | |
| 35 | 5040357 | Steering shaft assembly | |
| 36 | 5040457 | Swivel bracket shaft assembly bracket bolt | |
| 37 | 5040069 | Nylon nut 7 8 | |
| 38 | 5040320 | Washer 22 36 1 nylon | |
| 39 | 5040319 | Plate | |
| 40 | 5040070 | Cap nut bracket bolt tpl, tpx | |
| 41 | 5040317 | Carrying handle | |
| 42 | 5041555 | Bolt tpl, tpx | |
| 43 | 5041669 | Washer | |
| 44 | 5041492 | Washer | |
| 45 | 5041655 | Nylon nut | |
| 46 | 5040092 | Bushing 24 30 30 | |
| 47 | 5040093 | Thrust plate upper | |
| 48 | 5040091 | O ring 3.5 22 | |
| 49 | 5041329 | Rubber mount lower | |
| 50 | 5041412 | Mount bracket starboard | |
| 51 | 5041413 | Mount bracket port | |
| 52 | 5041566 | Bolt | |
| 53 | 5040252 | Ground l 110 drive shaft housing mount bracket | |
| 54 | 5041557 | Bolt | |
| 55 | 5041330 | Stud | |
| 56 | 5041405 | Rubber mount upper | |
| 57 | 5041573 | Bolt | |
| 58 | 5041332 | Damper upper | |
| 59 | 5041669 | Washer | |
| 60 | 5041331 | Nut flange | |
| 61 | 5041450 | Rigging bolt set tpl, tpx | |
| 62 | 5041799 | Reverse lock clip |
