EVINRUDE-JOHNSON 5040357 Steering Shaft Assembly

Write a Review
$539.49
SKU:
5040357
Schematic Object Key:
35

EVINRUDE-JOHNSON 5040357 Steering Shaft Assembly

$539.49

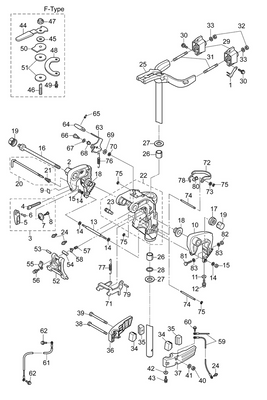

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5040357 Steering Shaft Assembly

Schematic Object Key : 35

Product Description: Steering Shaft Assembly

Category: EVINRUDE / AB Models / 9.8 PORTABLE / B10EGL4ABB / 16-4_STERN & SWIVEL BRACKET (EGL MODELS)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5040360 Clamp bracket starboard
2 5040358 Clamp screw kit
3 5040318 Clamp screw
4 5040045 Clamp screw handle
5 5040769 Rivet 3 22
6 5040033 Clamp screw pad
7 5040770 Shoulder bolt
8 5040354 Trim position decal
9 5040341 Lower tilt limit decal
10 5040361 Clamp bracket port
11 5040340 Tilt lock decal
12 5040342 Co pilot decal tpl, tpx
13 5040321 Spacer
14 5041564 Bolt
15 5040322 Trim setting plate
16 5040323 Tilt lock piece
17 5040329 Knob
18 5041475 Spring, tilt lock knob
19 5041611 Screw
20 5040362 Swivel bracket
21 5040055 Grease fitting
22 5040330 Tilt stopper body
23 5040324 Spring
24 5040331 Tilt stopper shaft upper
25 5041682 E ring d 6
26 5040332 Tilt stopper shaft lower
27 5041683 E ring d 9
28 5040333 Spring
29 5040032 Washer 10.5 18 1.5
30 5040328 Tilt stopper port
31 5040327 Bolt
32 5041679 Wave washer d 10
33 5040337 Reverse lock
34 5040336 Reverse lock spring
35 5040357 Steering shaft assembly
36 5040457 Swivel bracket shaft assembly bracket bolt
37 5040069 Nylon nut 7 8
38 5040320 Washer 22 36 1 nylon
39 5040319 Plate
40 5040070 Cap nut bracket bolt tpl, tpx
41 5040317 Carrying handle
42 5041555 Bolt tpl, tpx
43 5041669 Washer
44 5041492 Washer
45 5041655 Nylon nut
46 5040092 Bushing 24 30 30
47 5040093 Thrust plate upper
48 5040091 O ring 3.5 22
49 5041329 Rubber mount lower
50 5041412 Mount bracket starboard
51 5041413 Mount bracket port
52 5041566 Bolt
53 5040252 Ground l 110 drive shaft housing mount bracket
54 5041557 Bolt
55 5041330 Stud
56 5041405 Rubber mount upper
57 5041573 Bolt
58 5041332 Damper upper
59 5041669 Washer
60 5041331 Nut flange
61 5041450 Rigging bolt set tpl, tpx
62 5041799 Reverse lock clip
