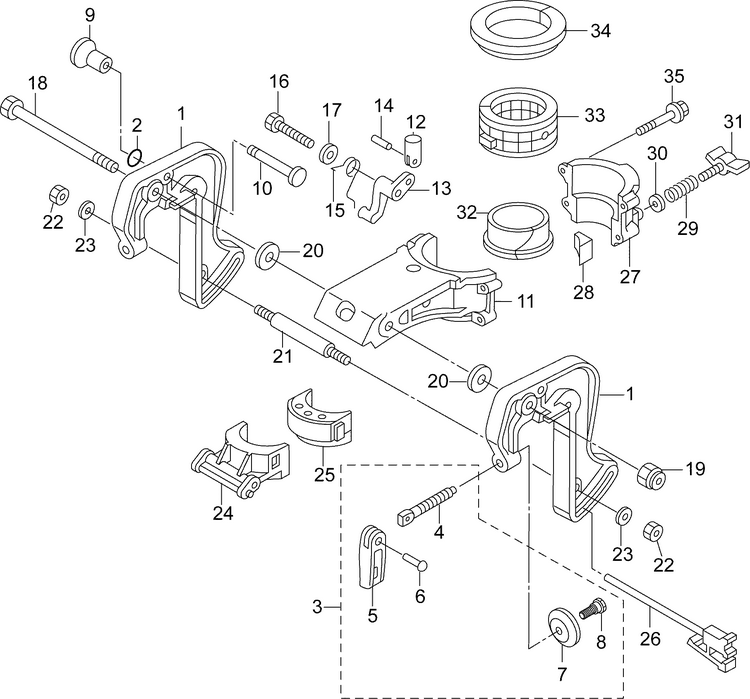

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 26
Product Description: Thrust Rod Assembly
Category: EVINRUDE / AB Models / 3.5 PORTABLE / E3RG4ABB / 16-4_STERN & SWIVEL BRACKET
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5041834 | Clamp bracket graphite | |
2 | 5040009 | O ring 2.4 9.5 | |
3 | 5041873 | Clamp screw kit graphite | |
4 | 5040149 | Clamp screw | |
5 | 5041833 | Clamp screw handle graphite | |
6 | 5040769 | Rivet 3 22 | |
7 | 5040033 | Clamp screw pad | |
8 | 5040770 | Shoulder bolt | |
9 | 5040020 | Knob tilt stopper | |
10 | 5040411 | Tilt stopper | |
11 | 5041835 | Swivel bracket a graphite | |
12 | 5040424 | Stopper | |
13 | 5040412 | Lever | |
14 | 5041684 | Spring pin 2 12 | |
15 | 5040425 | Spring | |
16 | 5041585 | Bolt | |
17 | 5041668 | Washer | |
18 | 5040016 | Bolt 8 122 | |
19 | 5041655 | Nylon nut | |
20 | 5040011 | Washer 8.5 28 1 | |
21 | 5040017 | Spacer | |
22 | 5041649 | Nut | |
23 | 5041668 | Washer | |
24 | 5040409 | Thrust supporter | |
25 | 5040408 | Damper lower | |
26 | 5040808 | Thrust rod assembly | |
27 | 5041836 | Swivel bracket b graphite | |
28 | 5040018 | Friction piece | |
29 | 5040019 | Spring, friction plate | |
30 | 5041668 | Washer | |
31 | 5041814 | Screw friction plate graphite | |
32 | 5040410 | Bushing pivot | |
33 | 5040234 | Bushing upper steering | |
34 | 5041018 | Thrust bushing | |
35 | 5041320 | Bolt |
