EVINRUDE-JOHNSON 5040819 Guide Plate Gasket

Write a Review
$5.29
SKU:
5040819
Schematic Object Key:
21

EVINRUDE-JOHNSON 5040819 Guide Plate Gasket

$5.29

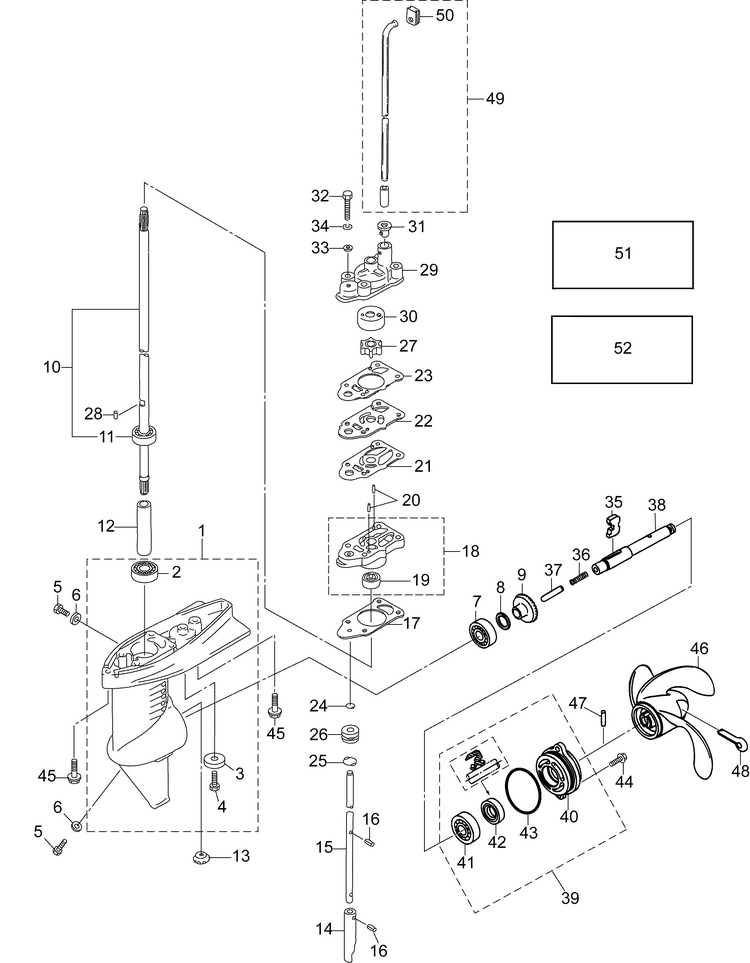

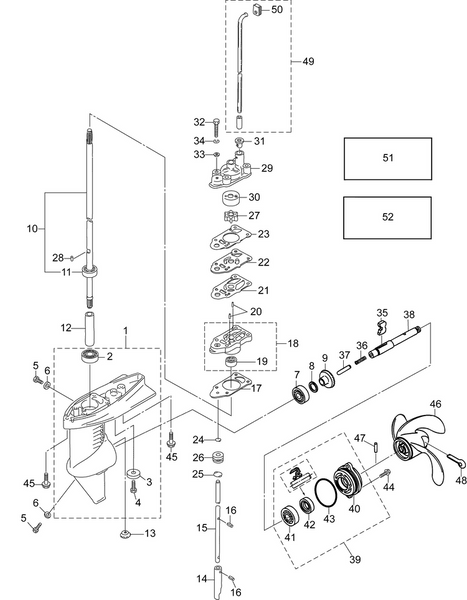

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5040819 Guide Plate Gasket

Schematic Object Key : 21

Product Description: Guide Plate Gasket

Category: EVINRUDE / 2012 / 3.5 PORTABLE / B3R4INS / 17-1_GEARCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5040752 Gear case assembly
2 5040406 Ball bearing 6000
3 5040052 Anode
4 5041524 Bolt
5 5040029 Plug
6 5040030 Gasket 8.1 15 1
7 5041703 Ball bearing 6004
8 5040156 Shim 21 28 0.1
8 5040156 Shim 21 28 0.1 This part replaces 5040157.
9 5040155 Bevel gear ass'y a
10 5040417 Drive shaft assembly r models 15 in. shaft
11 5040406 Ball bearing 6000
12 5040814 Spacer 10.1 15 72
13 5040158 Bevel gear b
14 5040821 Clutch cam
15 5040822 Cam rod r models 15 in. shaft
16 5041690 Spring pin 3 8
17 5040818 Pump case gasket lower
18 5040942 Pump case ass'y lower
19 5040807 Oil seal 10 22 8
20 5040526 Key pump impeller
21 5040819 Guide plate gasket
22 5040418 Water pump guide plate
23 5040817 Pump case gasket
24 5040195 O ring a 2.5 4.9
25 5040009 O ring 2.4 9.5
26 5040823 Cam rod bushing
27 5040180 Water pump impeller
28 5040181 Key pump impeller
29 5040816 Pump case upper
30 5040815 Pump case liner
31 5040820 Grommet water tube lower
32 5041584 Bolt
33 5041661 Washer
34 5041675 Spring washer
35 5040811 Clutch
36 5040812 Spring clutch
37 5040813 Push rod clutch
38 5040810 Propeller shaft
39 5040827 Propeller shaft housing assembly
40 5040826 Propeller shaft housing
41 5041701 Ball bearing 6001
42 5040015 Oil seal 12 24 8
43 5040061 O ring 3.2 47
44 5041560 Bolt
45 5040404 Bolt
46 5040809 Propeller plastic standard
46 5040825 Propeller 6" alminium aluminum
46 5040021 Propeller 6" plastic plastic
46 5040026 Propeller 4.5" plastic aluminum
47 5040022 Shear pin
48 5041697 Cotter pin
49 5040420 Water pipe assembly r models 15 in. shaft
50 5040419 Grommet, water pipe upper
51 5040824 Lower unit gasket set
52 5040434 Water pump repair kit
NS 5040048 Engine flushing adapter optional accessory
