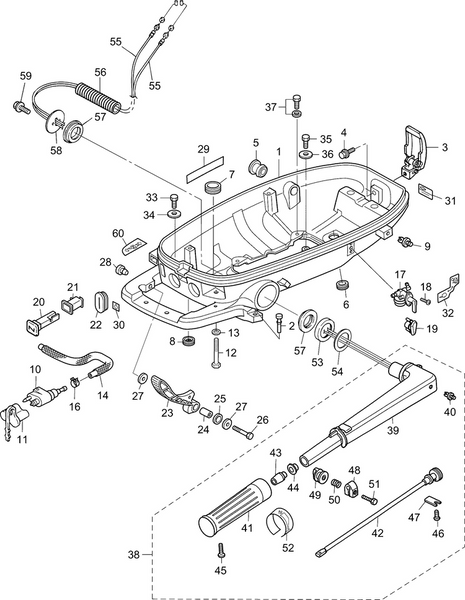

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 23
Product Description: Shift Lever
Category: EVINRUDE / 2012 / 6 PORTABLE / E6RL4INS / 11-1_LOWER ENGINE COVER
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5040904 | Bottom cowl | |
2 | 5040885 | Grommet 5.5 9.5 44 | |
3 | 5040338 | Cowl latch assembly | |
4 | 5041532 | Bolt | |
5 | 5040886 | Grommet 10.5 15.5 20.5 32 | |
6 | 5040054 | Grommet18 2.5 | |
7 | 5040553 | Grommet 25 5 4 hp models with integral fuel tank | |
8 | 5040064 | Grommet 17 2.7 | |
9 | 5040106 | Plastic rivet 6.5 | |
10 | 5040239 | Fuel connector | |
11 | 5041041 | Fuel connector protector | |
12 | 5041525 | Bolt | |
13 | 5041671 | Washer | |
14 | 5041111 | Fuel hose w protector | |
16 | 5040403 | Clip 6 hp models with portable fuel tank | |
17 | 5041093 | Fuel valve assembly 4 hp models with integral fuel tank | |
18 | 5040900 | Screw 4 hp models with integral fuel tank | |
19 | 5040884 | Grommet 6 hp models with portable fuel tank | |
20 | 5041037 | Choke rod | |
21 | 5040883 | Choke rod bushing | |
22 | 5040882 | Grommet 21 38.5 | |
23 | 5040875 | Shift lever | |
24 | 5040867 | Collar 15.9 17.9 | |
25 | 5040869 | Washer 30 45 1 | |
26 | 5041021 | Bolt | |
27 | 5040057 | Washer 6.5 23 1.5 | |
28 | 5040256 | Cable terminal plug | |
29 | 5041039 | Storage decal | |
30 | 5040585 | Oil pressure decal | |
31 | 5041042 | Spark plug decal | |
32 | 5041116 | Fuel lever decal | |
33 | 5041523 | Bolt | |
34 | 5040057 | Washer 6.5 23 1.5 | |
35 | 5041523 | Bolt 6 hp models with portable fuel tank | |
36 | 5040057 | Washer 6.5 23 1.5 6 hp models with portable fuel tank | |
37 | 5041559 | Bolt | |
38 | 5041421 | Tiller handle assembly | |
39 | 5041422 | Tiller handle | |
40 | 5040106 | Plastic rivet 6.5 | |
41 | 5041217 | Grip | |
42 | 5041339 | Throttle shaft | |
43 | 5041023 | Throttle shaft damper | |
44 | 5041026 | Bushing 14 15.8 7 | |
45 | 5041598 | Screw | |
46 | 5041629 | Screw | |
47 | 5040508 | Throttle shaft support | |
48 | 5041337 | Friction piece | |
49 | 5041340 | Adjusting nut | |
50 | 5041338 | Spring | |
51 | 5041549 | Bolt | |
52 | 5041467 | Throttle decal | |
53 | 5041022 | Spacer, 33.5 55 | |
54 | 5040510 | Washer, 30 45 1 | |
55 | 5040871 | Throttle wire | |
56 | 5040982 | Protector | |
57 | 5041024 | Bushing, steering | |
58 | 5040868 | Cover | |
59 | 5041559 | Bolt | |
60 | 5041114 | Shift decal |
