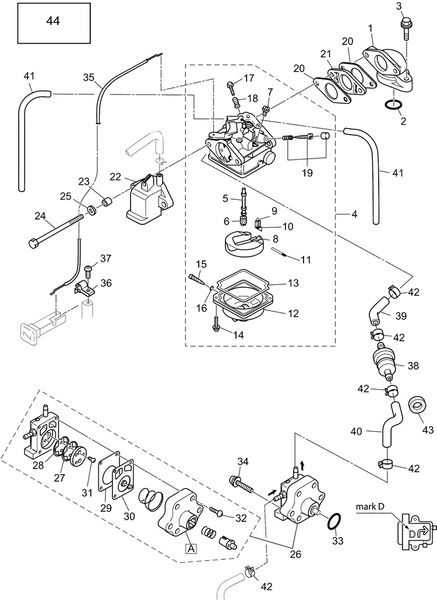

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 8
Product Description: Float
Category: EVINRUDE / AA Models / 6 PORTABLE / E6RX4AAB & AAC / 13-3_CARBURETOR & FUEL PUMP
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5041055 | Intake manifold assembly | |
2 | 5040960 | Intake manifold gasket | |
3 | 5041542 | Bolt | |
4 | 5041098 | Carburetor 4 hp | |
4 | 5041107 | Carburetor 6 hp | |
5 | 5041099 | Main nozzle 4 hp | |
5 | 5041108 | Main nozzle 6 hp | |
6 | 5040939 | Main jet 62 4 hp | |
6 | 5040849 | Main jet 70 6 hp | |
7 | 5041161 | Slow jet 38 | |
8 | 5040968 | Float | |
9 | 5040970 | Float valve | |
10 | 5040971 | Clip | |
11 | 5040969 | Float arm pin | |
12 | 5040966 | Float chamber | |
13 | 5040967 | Float chamber o ring | |
14 | 5041643 | Screw | |
15 | 5040974 | Drain screw | |
16 | 5040975 | O ring drain screw | |
17 | 5040972 | Stop screw | |
18 | 5040973 | Spring stop screw | |
19 | 5041100 | Pilot screw 4 hp | |
19 | 5040491 | Pilot screw 6 hp | |
20 | 5040959 | Carburetor gasket | |
21 | 5040976 | Insulator | |
22 | 5040848 | Intake silencer | |
23 | 5040248 | Collar 6.2 9 7.4 | |
24 | 5041597 | Bolt 6 85 | |
25 | 5041661 | Washer | |
26 | 5040977 | Fuel pump assembly mark "d" | |
27 | 5040981 | Check valve p black | |
28 | 5040979 | Check valve r white | |
29 | 5040980 | Pump body gasket | |
30 | 5040978 | Pump diaphragm | |
31 | 5041633 | Screw | |
32 | 5041644 | Screw | |
33 | 5041003 | O ring 2.6 18.7 | |
34 | 5041621 | Screw | |
35 | 5040887 | Choke wire | |
36 | 5041103 | Cable holder | |
37 | 5041608 | Screw | |
38 | 5040140 | Fuel filter assembly | |
39 | 5040906 | Fuel hose, low permeation us epa approved fuel hose | |
39 | 5040846 | Fuel hose not available in north america | |
40 | 5041112 | Fuel hose, low permeation us epa approved fuel hose | |
40 | 5041113 | Fuel hose not available in north america | |
41 | 5041713 | Hose | |
42 | 5040403 | Clip | |
43 | 5040545 | Mount rubber 9 16 4.3 | |
44 | Hose – 4 HP | See INTEGRAL FUEL TANK | ||
44 | Hose – 6 HP | See LOWER COVER | ||
45 | 5040239 | Fuel connector | |
46 | 5041041 | Fuel connector protector | |
47 | 5041051 | Carburetor repair kit |
