EVINRUDE-JOHNSON 5040975 O-Ring Drain Screw

Write a Review
$4.74
SKU:
5040975
Schematic Object Key:
16

EVINRUDE-JOHNSON 5040975 O-Ring Drain Screw

$4.74

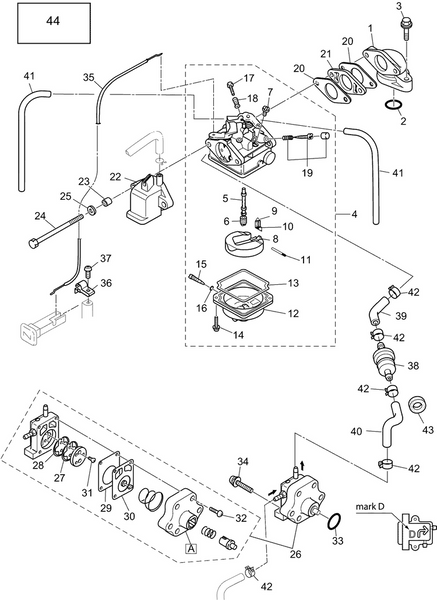

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5040975 O-Ring Drain Screw

Schematic Object Key : 16

Product Description: O-Ring Drain Screw

Category: EVINRUDE / AA Models / 6 PORTABLE / E6RX4AAB & AAC / 13-3_CARBURETOR & FUEL PUMP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5041055 Intake manifold assembly
2 5040960 Intake manifold gasket
3 5041542 Bolt
4 5041098 Carburetor 4 hp
4 5041107 Carburetor 6 hp
5 5041099 Main nozzle 4 hp
5 5041108 Main nozzle 6 hp
6 5040939 Main jet 62 4 hp
6 5040849 Main jet 70 6 hp
7 5041161 Slow jet 38
8 5040968 Float
9 5040970 Float valve
10 5040971 Clip
11 5040969 Float arm pin
12 5040966 Float chamber
13 5040967 Float chamber o ring
14 5041643 Screw
15 5040974 Drain screw
16 5040975 O ring drain screw
17 5040972 Stop screw
18 5040973 Spring stop screw
19 5041100 Pilot screw 4 hp
19 5040491 Pilot screw 6 hp
20 5040959 Carburetor gasket
21 5040976 Insulator
22 5040848 Intake silencer
23 5040248 Collar 6.2 9 7.4
24 5041597 Bolt 6 85
25 5041661 Washer
26 5040977 Fuel pump assembly mark "d"
27 5040981 Check valve p black
28 5040979 Check valve r white
29 5040980 Pump body gasket
30 5040978 Pump diaphragm
31 5041633 Screw
32 5041644 Screw
33 5041003 O ring 2.6 18.7
34 5041621 Screw
35 5040887 Choke wire
36 5041103 Cable holder
37 5041608 Screw
38 5040140 Fuel filter assembly
39 5040906 Fuel hose, low permeation us epa approved fuel hose
39 5040846 Fuel hose not available in north america
40 5041112 Fuel hose, low permeation us epa approved fuel hose
40 5041113 Fuel hose not available in north america
41 5041713 Hose
42 5040403 Clip
43 5040545 Mount rubber 9 16 4.3
44 Hose – 4 HP | See INTEGRAL FUEL TANK
44 Hose – 6 HP | See LOWER COVER
45 5040239 Fuel connector
46 5041041 Fuel connector protector
47 5041051 Carburetor repair kit
