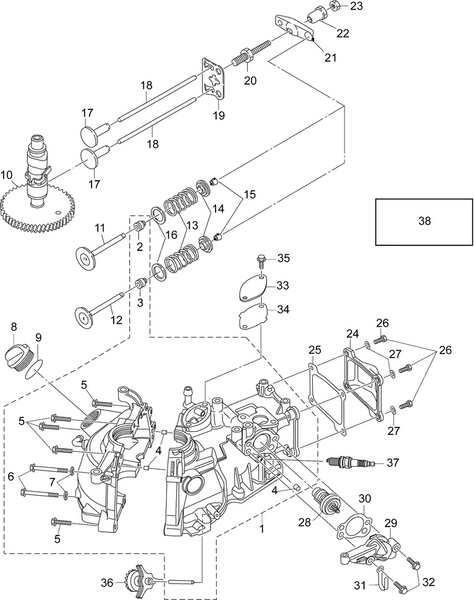

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 20
Product Description: Pivot Bolt
Category: EVINRUDE / 2012 / 3.5 PORTABLE / B3R4INS / 15-6_CYLINDER & CRANKCASE ASSEMBLY
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5040931 | Cylinder and crankcase assembly | |
2 | 5041199 | Intake valve stem seal black | |
3 | 5041200 | Exhaust valve stem seal green | |
4 | 5040056 | Dowel pin 6 12 | |
5 | 5041576 | Bolt | |
6 | 5041596 | Bolt | |
7 | 5041668 | Washer | |
8 | 5041148 | Oil filler cap | |
9 | 5041143 | O ring 3.1 24.4 | |
10 | 5040921 | Camshaft assembly | |
11 | 5040393 | Intake valve | |
12 | 5041306 | Exhaust valve | |
13 | 5040477 | Valve spring l 35 | |
14 | 5041308 | Retainer | |
15 | 5040986 | Cotter | |
16 | 5040984 | Valve spring seat | |
17 | 5040394 | Lifter | |
18 | 5040988 | Push rod | |
19 | 5040395 | Plate push rod | |
20 | 5040990 | Pivot bolt | |
21 | 5040396 | Rocker arm | |
22 | 5040991 | Pivot rocker arm | |
23 | 5041014 | Adjusting nut | |
24 | 5040435 | Cylinder head cover | |
25 | 5040369 | Cylinder head cover gasket | |
26 | 5041540 | Bolt | |
27 | 5040773 | Washer 6 16 1.5 | |
28 | 5040958 | Thermostat 52 | |
29 | 5040436 | Thermostat cap | |
30 | 5040370 | Thermostat cap gasket | |
31 | 5040242 | Clamp 6.5 67p | |
32 | 5041562 | Bolt | |
33 | 5040399 | Breather chamber cover | |
34 | 5040400 | Gasket breather chamber cover | |
35 | 5041559 | Bolt | |
36 | 5040402 | Slinger | |
37 | 5031287 | Plug, spark dcpr6e | |
38 | 5040433 | Power head gasket set |
