EVINRUDE-JOHNSON 5040998 Mesh Strainer

Write a Review
$7.23
SKU:
5040998
Schematic Object Key:
29

EVINRUDE-JOHNSON 5040998 Mesh Strainer

$7.23

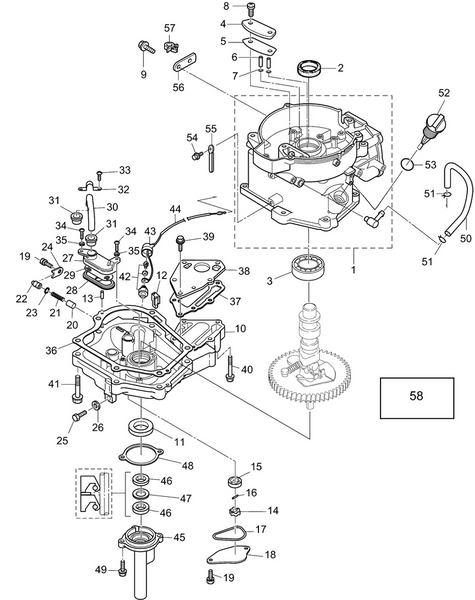

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5040998 Mesh Strainer

Schematic Object Key : 29

Product Description: Mesh Strainer

Category: EVINRUDE / 2012 / 4 PORTABLE / B4R4INS / 15-6_CYLINDER & CRANKCASE ASSEMBLY

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5040902 Cylinder block
2 5040000 Oil seal 20 35 7
3 5041707 Ball bearing 6205
4 5040502 Breather chamber cover
5 5040494 Gasket breather chamber cover
6 5041180 Collar breather
7 5041678 Wave washer d 5
8 5041625 Screw
9 5041557 Bolt This part replaces 5041530.
10 5040495 Oil pan sub assembly
11 5040842 Oil seal 25 40 8
12 5040994 Grommet oil pan
13 5040056 Dowel pin 6 12
14 5041004 Oil pump rotor inner
15 5041005 Oil pump rotor outer
16 5041006 Pin oil pump
17 5041181 O ring oil pump cover, 3.1
18 5041007 Oil pump cover
19 5041541 Bolt 6 16
20 5041010 Plunger control
21 5041011 Spring pressure
22 5041012 Seat spring
23 5040062 O ring 1.9 6.8
24 5041036 Plunger cover
25 5041013 Drain bolt
26 5040995 Washer 10.2 19 1
27 5040996 Strainer body
28 5040997 Strainer cap
29 5040998 Mesh strainer
30 5040999 Pipe strainer
31 5041000 Seal rubber strainer
32 5041001 Strainer stopper
33 5041624 Screw
34 5040765 Bolt 5 16 precoated
35 5041663 Washer
36 5040993 Oil pan gasket
37 5040962 Exhaust cover gasket
38 5040961 Exhaust cover inner
39 5041573 Bolt
40 5041577 Bolt
41 5041543 Bolt
42 5041008 Oil pressure switch
43 5041009 Grommet oil pressure switch
44 5040862 Oil pressure switch lead wire l 390
45 5040137 Crankcase head
46 5040843 Oil seal 10.1 25 7
47 5040139 Spacer 19 24.8 1.0
48 5040138 Crankcase head gasket
49 5041533 Bolt
50 5041179 Breather hose
51 5040757 Clip 12
52 5041002 Oil level gauge
53 5041003 O ring 2.6 18.7
54 5041557 Bolt This part replaces 5041530.
55 5040014 Clamp 6.5 47.5p
56 5040870 Clamp holder
57 5040861 Clamp
58 5040501 Power head gasket set
