EVINRUDE-JOHNSON 5041251 Clamp, 6.5-87P | El, Pl, Px

Write a Review
$4.18
SKU:
5041251
Schematic Object Key:
34

EVINRUDE-JOHNSON 5041251 Clamp, 6.5-87P | El, Pl, Px

$4.18

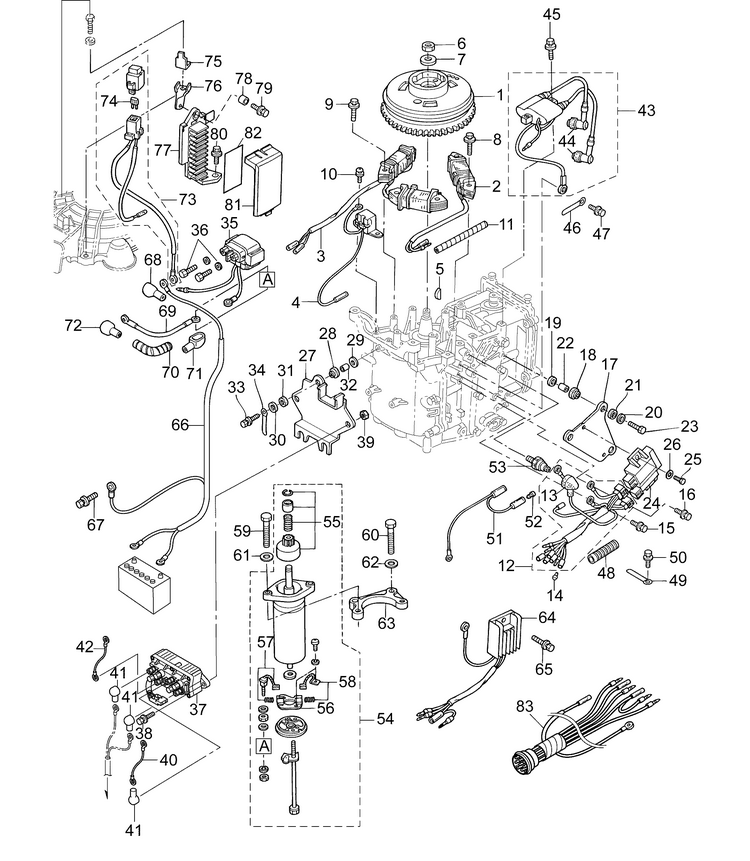

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5041251 Clamp, 6.5-87P | El, Pl, Px

Schematic Object Key : 34

Product Description: Clamp, 6.5-87P | El, Pl, Px

Category: EVINRUDE / 2012 / 9.8 PORTABLE / E10TEL4INS / 12-0_ELECTRICAL SYSTEM

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5040309 Flywheel w gear
2 5040306 Exciter coil
3 5040307 Alternator assembly el, pl, px, te, tp
4 5041299 Pulsar coil
5 5041254 Key drive pulley
6 5040136 Nut 12 p1.25
7 5041666 Washer
8 5041535 Bolt
9 5041535 Bolt el, pl, px, te, tp
10 5041609 Screw
11 5041392 Hose protector r models
12 5040310 Cd unit cord assembly
13 5041009 Grommet oil pressure switch
14 5040256 Cable terminal plug light green white cable
15 5041557 Bolt ground cable This part replaces 5041530.
16 5041557 Bolt r models This part replaces 5041530.
17 5041298 Cd unit bracket
18 5041252 Rubber mount
19 5041147 Washer 6 16 1.5
20 5041147 Washer 6 16 1.5
21 5040545 Mount rubber 9 16 4.3
22 5040248 Collar 6.2 9 7.4
23 5041549 Bolt
24 5040308 Cd unit
25 5041323 Pre coated bolt
26 5041147 Washer 6 16 1.5
27 5041304 Electric bracket assembly el, pl, px, te, tp
28 5041252 Rubber mount
29 5041147 Washer 6 16 1.5
30 5041147 Washer 6 16 1.5
31 5040545 Mount rubber 9 16 4.3
32 5040248 Collar 6.2 9 7.4
33 5041548 Bolt el, pl, px, te, tp
34 5041251 Clamp, 6.5 87p el, pl, px
35 5041087 Starter solenoid el, pl, px
36 5041529 Bolt
37 5041497 Ptt solenoid switch a pl, px, tp
38 5041560 Bolt
39 5041649 Nut pl, px, tp
40 5040777 Solenoid switch cord a l 80 pl, px, tp
41 5041479 Terminal cap red cord pl, px, tp
41 5041479 Terminal cap red cord pl, px, tp
42 5040778 Solenoid switch cord b l 150 pl, px, tp
43 5041297 Ignition coil w resistance cap
44 5040983 Plug cap w resistance
45 5041534 Bolt
46 5040014 Clamp 6.5 47.5p alternator exciter cable
47 5041532 Bolt
48 5041300 Protector 24 70 r models
49 5041251 Clamp, 6.5 87p el, pl, px
50 5041557 Bolt
51 5041459 Separate cord black
52 5040256 Cable terminal plug light green white cable
53 5041008 Oil pressure switch
54 5040343 Starter motor assembly el, pl, px
55 5040107 Pinion assembly el, pl, px
56 5040346 Brush holder el, pl, px
57 5040344 Positive brush el, pl, px
58 5040345 Negative brush el, pl, px
59 5041593 Bolt starter motor el, pl, px
60 5041593 Bolt braket el, pl, px
61 5041669 Washer starter motor
62 5041669 Washer braket
63 5041386 Starter motor bracket el, pl, px
64 5040348 Rectifier complete el, pl, px
65 5041532 Bolt
66 5040467 Battery cable l 2500 el, pl, px
67 5041529 Bolt
68 5040349 Terminal cap el, pl, px
69 5040535 Starter cable l 200 el, pl, px
70 5041392 Hose protector starter cable el, pl, px
71 5041476 Terminal cap el, pl, px
72 5041479 Terminal cap el, pl, px
73 5041389 Fuse wire assembly w fuse l 185 el, pl, px
74 5041256 Fuse el, pl, px
75 5041151 Fuse holder bracket el, pl, px
76 5041301 Cable terminal holder stay el, pl, px
77 CABLE TERMINAL HOLDER | EL, PL, PX
78 5040003 Collar 6 8 6 el, pl, px
79 5041557 Bolt
80 5041559 Bolt el, pl, px
81 5040312 Cover terminal holder el, pl, px
82 5041381 Wiring diagram decal el, pl, px, r
82 5041449 Wiring diagram decal el, pl, px
83 CORD ASSEMBLY | PL, PX
