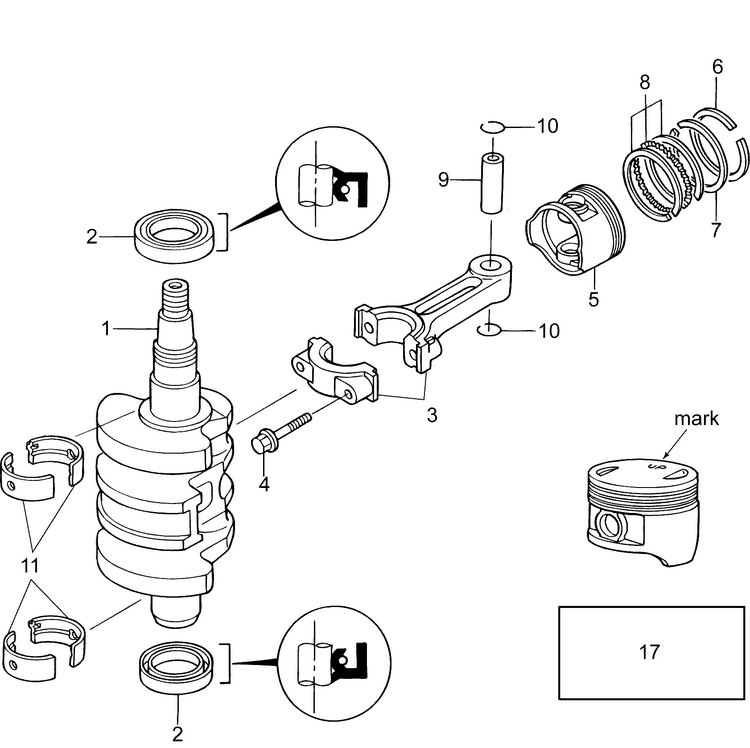

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 5
Product Description: Piston (Standard Size) | Standard Size
Category: EVINRUDE / AA Models / 9.8 PORTABLE / B10PX4AAB & AAC / 15-2_CRANKSHAFT & PISTONS
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5041267 | Crankshaft assembly | |
2 | 5041269 | Oil seal 30 45 8 | |
3 | 5041268 | Connecting rod assembly | |
4 | 5040952 | Connecting rod bolt | |
5 | 5041259 | Piston standard size standard size | |
5 | 5041260 | Piston 0.5 over size optional | |
6 | 5041261 | Piston ring standard size 1st standard size | |
6 | 5041264 | Piston ring 0.5 over size 1st optional | |
7 | 5041262 | Piston ring standard size 2nd standard size | |
7 | 5041265 | Piston ring 0.5 over size 2nd optional | |
8 | 5041263 | Piston ring oil standard size | |
8 | 5041266 | Piston ring oil 0.5 over size optional | |
9 | 5040028 | Piston pin | |
10 | 5040088 | Piston pin clip | |
11 | 5041310 | Plain shaft bearing brown | |
11 | 5041309 | Plain shaft bearing black | |
12 | 5041397 | Piston ring set standard size standard size | |
12 | 5041398 | Piston ring set 0.5 over size optional |
