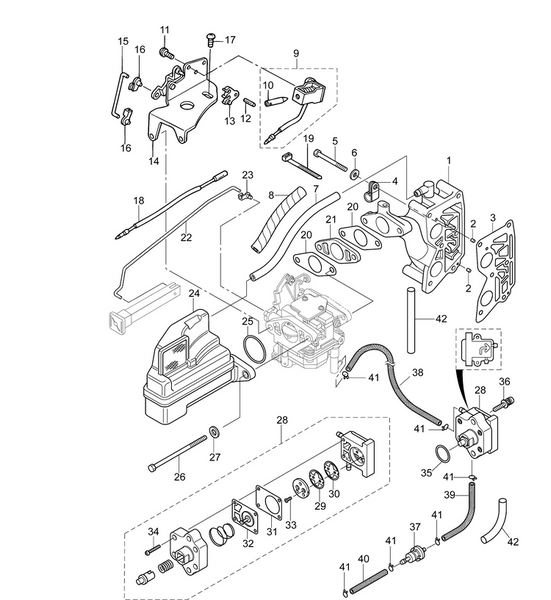

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 21
Product Description: Insulator
Category: EVINRUDE / 2012 / 9.8 PORTABLE / E10TPX4INS / 15-1_INTAKE MANIFOLD & FUEL PUMP
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 5041273 | Intake manifold assembly | |
| 2 | 5041685 | Spring pin 3 10 | |
| 3 | 5041276 | Intake manifold gasket | |
| 4 | 5040059 | Clamp, 6.5 14 | |
| 5 | 5041592 | Bolt | |
| 6 | 5041668 | Washer | |
| 7 | 5041724 | Hose | |
| 8 | 5041392 | Hose protector el, pl, px | |
| 9 | 5041388 | Choke solenoid el el, pl, px | |
| 10 | 5040122 | Plunger choke solenoid el, pl, px | |
| 11 | 5041617 | Screw, choke solenoid el, pl, px | |
| 12 | 5041686 | Spring pin el, pl, px | |
| 13 | 5040086 | Choke solenoid hook el, pl, px | |
| 14 | 5041391 | Choke solenoid bracket assembly el el, pl, px | |
| 15 | 5041390 | Link rod el el, pl, px | |
| 16 | 5041378 | Rod snap el, pl, px | |
| 17 | 5041626 | Screw el, pl, px | |
| 18 | 5041384 | Assist cord blue for ep | |
| 19 | 5041258 | Band lead wire 104 el, pl, px | |
| 20 | 5041274 | Carburetor gasket | |
| 21 | 5041290 | Insulator | |
| 22 | 5041488 | Choke rod el, pl, px, r | |
| 23 | 5040085 | Rod snap 3 b el, pl, px, r | |
| 24 | 5041278 | Intake silencer assembly | |
| 25 | 5041275 | O ring 2.4 35.2 | |
| 26 | 5041586 | Bolt, carburetor | |
| 27 | 5041668 | Washer | |
| 28 | 5040977 | Fuel pump assembly mark d | |
| 29 | 5040981 | Check valve p white | |
| 30 | 5040979 | Check valve r black | |
| 31 | 5040980 | Pump body gasket | |
| 32 | 5040978 | Pump diaphragm | |
| 33 | 5041633 | Screw | |
| 34 | 5041644 | Screw | |
| 35 | 5041003 | O ring 2.6 18.7 | |
| 36 | 5041632 | Screw | |
| 37 | 5040140 | Fuel filter assembly | |
| 38 | 5041718 | Fuel hose not available in north america | |
| 38 | 5040623 | Fuel hose w protector us epa approved fuel hose | |
| 39 | 5041717 | Fuel hose not available in north america | |
| 39 | 5041431 | Fuel hose w protector us epa approved fuel hose | |
| 40 | 5041719 | Fuel hose not available in north america | |
| 45 | 5040293 | Fuel hose w protector us epa approved fuel hose | |
| 41 | 5040051 | Clip fuel hose 10 use with standard hose outside of north america | |
| 41 | 5040403 | Clip use with us epa approved fuel hose | |
| 42 | 5041440 | Protector, 12 120 standard size | |
| NS | 5041798 | Fuel pump kit, water cooled optional accessory |
