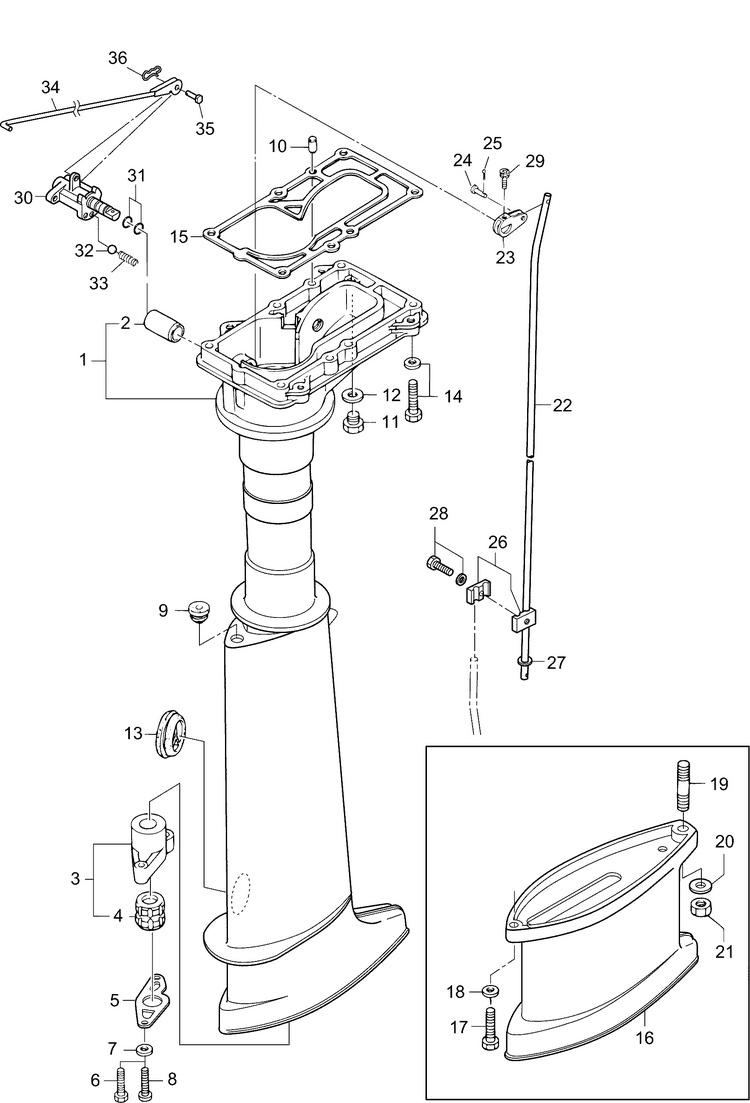

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 17
Product Description: Bolt | 25" Models
Category: EVINRUDE / AA Models / 4 PORTABLE / E4R4AAA / 16-0_DRIVESHAFT HOUSING
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5041056 | Drive shaft housing assembly 15" models | |
1 | 5041057 | Drive shaft housing assembly 20" models | |
2 | 5040006 | Bushing shift lever | |
3 | 5040172 | Drive shaft bushing assembly 20" models | |
3 | 5040498 | Drive shaft bushing assembly 25" models | |
4 | 5040142 | Drive shaft bushing gray 20" models | |
4 | 5040405 | Drive shaft bushing 25" models | |
5 | 5040173 | Stopper drive shaft | |
6 | 5041034 | Screw precoated 5 25 20, 25" models | |
7 | 5041667 | Washer | |
8 | 5041626 | Screw 15" models | |
9 | 5040198 | Grommet cam rod | |
10 | 5040056 | Dowel pin 6 12 | |
11 | 5041578 | Bolt | |
12 | 5040030 | Gasket 8.1 15 1 | |
13 | 5040148 | Grommet 29.3 | |
14 | 5041562 | Bolt | |
15 | 5041016 | Drive shaft housing gasket | |
16 | 5040228 | Extension housing 25" models | |
17 | 5041582 | Bolt 25" models | |
18 | 5041668 | Washer 25" models | |
19 | 5041581 | Stud bolt 25" models | |
20 | 5041669 | Washer 25" models | |
21 | 5041648 | Nut 25" models | |
22 | 5040201 | Shift rod s 15" models | |
22 | 5040880 | Shift rod l 20" models | |
23 | 5040203 | Shift rod lever | |
24 | 5040202 | Pin shift lever | |
25 | 5041698 | Split pin | |
26 | 5040204 | Shift rod joint ass y | |
27 | 5041661 | Washer | |
28 | 5041532 | Bolt | |
29 | 5041579 | Bolt | |
30 | 5040878 | Shift lever shaft assembly | |
31 | 5040010 | O ring 1.9 8.8 | |
32 | 5040877 | Ceramic ball 7.7 | |
33 | 5040876 | Spring shift lever stopper | |
34 | 5040879 | Shift lever rod | |
35 | 5040881 | Pin, shift rod lever | |
36 | 5040806 | Snap pin |
