EVINRUDE-JOHNSON 5041656 Nylon Nut

Write a Review
$8.35
SKU:
5041656
Schematic Object Key:
32

EVINRUDE-JOHNSON 5041656 Nylon Nut

$8.35

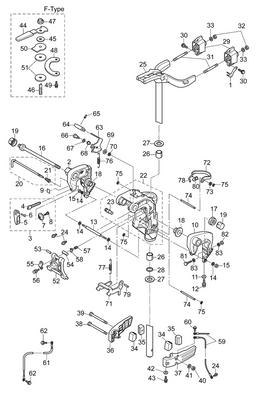

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5041656 Nylon Nut

Schematic Object Key : 32

Product Description: Nylon Nut

Category: EVINRUDE / AA Models / 15 PORTABLE / B15TE4AAA / 16-4_STERN & SWIVEL BRACKET (MANUAL TILT)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5041220 Lock plate water pipe
2 5040735 Clamp bracket starboard
3 5040358 Clamp screw kit
4 5040318 Clamp screw
5 5040045 Clamp screw handle
6 5040769 Rivet 3 22
7 5040033 Clamp screw pad
8 5040770 Shoulder bolt
9 5041086 Co pilot decal r, te models
10 5040736 Clamp bracket port
11 5040052 Anode
12 5041533 Bolt
13 5041462 Distance piece
14 5041668 Washer starboard
14 5041668 Washer port
15 5041649 Nut
16 5040457 Swivel bracket shaft assembly bracket bolt
17 5040069 Nylon nut 7 8
18 5040087 Bushing 26 32
19 5040070 Cap nut bracket bolt r, te models
20 5040677 Thrust rod assembly
21 5040150 Thrust rod spring
22 5040737 Swivel bracket assembly
23 5040577 Pin
24 5040055 Grease fitting
25 5040751 Steering shaft assembly
26 5041211 Bushing 28 31 35
27 5041083 Thrust plate
28 5041082 O ring 3.5 25.7
29 5040673 Rubber mount upper 15 in. shaft
30 5041569 Bolt
31 5041209 Stud bolt 10 95
32 5041656 Nylon nut
33 5041670 Washer
34 5040675 Damper lower
35 5040674 Rubber mount lower
36 5040733 Mount bracket starboard
37 5040734 Mount bracket port
38 5041554 Bolt
39 5041555 Bolt
40 5041650 Nut
41 5041138 Washer 8.1 16 1.5
42 5040052 Anode
43 5041533 Bolt
44 5040325 Friction lever r, te
45 5041212 Washer 8.1 20 0.8 r, te
46 5041213 Bolt co pilot r, te
47 5041458 Nylon nut r, te
48 5041214 Plate copilot r, te
49 5041559 Bolt r, te
50 5041215 Washer co pilot r, te
52 5040837 Tilt stopper
53 5041688 Spring pin
54 5040094 Bushing 8.2 10 26.5
51 5041216 Disc co pilot r, te
55 5040095 Setting plate
56 5041567 Bolt
57 5040771 Friction spring
58 5040072 Setting piece tilt stopper
59 5040243 Ground l 130 drive shaft housing
59 5040243 Ground l 130 swivel bracket
60 5041529 Bolt pl, te models
62 5041557 Bolt This part replaces 5041530.
63 5040575 Reverse lock lever
64 5040488 Reverse lock lever grip
61 5040243 Ground l 130
65 5040081 Stopper reverse lock lever grip
66 5040486 Shoulder bolt
67 5041669 Washer
68 5040485 Bushing
69 5040351 Washer 8.5 18 1.6
70 5041147 Washer 6 16 1.5
71 5040579 Reverse lock
72 5040576 Reverse lock arm
73 5040570 Collar
74 5040836 Reverse lock shaft b
75 5041681 E ring
76 5040580 Reverse lock lever spring
77 5040578 Reverse lock spring
78 5040574 Reverse lock link
79 5041687 Spring pin
80 5040058 Rod snap 3.5 2
81 5041555 Bolt optional
82 5041650 Nut optional
83 5041669 Washer optional
