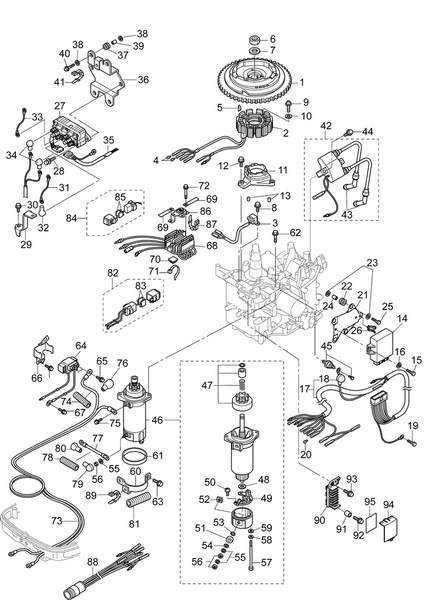

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 58
Product Description: Spring Washer
Category: EVINRUDE / AB Models / 15 PORTABLE / E15TEG4ABA / 12-0_ELECTRICAL SYSTEM
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5040655 | Flywheel w ring gear | |
2 | 5040648 | Alternator assembly | |
3 | 5040652 | Pulsar coil | |
4 | 5040256 | Cable terminal plug r models | |
5 | 5041254 | Key drive pulley magneto | |
6 | 5041657 | Nut | |
7 | 5041060 | Washer 16 27 3.2 | |
8 | 5041528 | Bolt | |
9 | 5041619 | Screw | |
10 | 5041671 | Washer | |
11 | 5041461 | Coil bracket | |
12 | 5040469 | Bolt m6 25 | |
13 | 5040056 | Dowel pin 6 12 | |
14 | 5040650 | Cd unit | |
15 | 5041323 | Pre coated bolt | |
16 | 5041147 | Washer 6 16 1.5 | |
17 | 5040654 | Cd unit cord assembly | |
18 | 5041009 | Grommet oil pressure switch | |
19 | 5041557 | Bolt | |
20 | 5040256 | Cable terminal plug r models | |
20 | 5040256 | Cable terminal plug te models | |
20 | 5040256 | Cable terminal plug te models | |
20 | 5040256 | Cable terminal plug pl | |
21 | 5040651 | Cd unit bracket | |
22 | 5040454 | Rubber mount | |
23 | 5041147 | Washer 6 16 1.5 | |
24 | 5040658 | Collar 6.2 9 8.7 | |
25 | 5041548 | Bolt | |
26 | 5040722 | Band, 135 | |
27 | 5041497 | Ptt solenoid switch a pl, te models | |
28 | 5041560 | Bolt pl, te models | |
29 | 5040584 | Retainer pl, te models | |
30 | 5041559 | Bolt pl, te models | |
31 | 5040582 | Solenoid switch cord a l 300 pl, te models | |
32 | 5041479 | Terminal cap pl, te models | |
33 | 5040778 | Solenoid switch cord b l 150 pl, te models | |
34 | 5041479 | Terminal cap pl, te models | |
35 | 5040703 | Extension cord ptt pl, te models | |
36 | 5040660 | Bracket ptt solenoid pl, te models | |
37 | 5040454 | Rubber mount pl, te models | |
38 | 5041147 | Washer 6 16 1.5 pl, te models | |
39 | 5040658 | Collar 6.2 9 8.7 pl, te models | |
40 | 5041548 | Bolt pl, te models | |
41 | 5040722 | Band, 135 pl, te models | |
42 | 5040649 | Ignition coil w resistance cap | |
43 | 5040455 | Plug cap w resistance | |
44 | 5041561 | Bolt | |
45 | 5041008 | Oil pressure switch | |
46 | 5040786 | Starter motor assembly | |
47 | 5040787 | Pinion assembly | |
48 | 5040780 | Washer | |
49 | 5040779 | Brush holder assembly | |
50 | 5041623 | Screw | |
51 | 5040781 | Bushing 1 | |
52 | 5040782 | Bushing 2 | |
53 | 5040783 | O ring | |
54 | 5041661 | Washer | |
55 | 5041675 | Spring washer | |
56 | 5041651 | Nut | |
57 | 5040784 | Bolt | |
58 | 5041677 | Spring washer | |
59 | 5041672 | Washer | |
60 | 5040704 | Starter motor band all | |
61 | 5040785 | Damper starter motor | |
62 | 5041568 | Bolt | |
63 | 5041567 | Bolt all | |
64 | 5040705 | Starter solenoid pl, te models | |
65 | 5041529 | Bolt | |
66 | 5040706 | Starter solenoid bracket | |
67 | 5041557 | Bolt | This part replaces 5041530. |
68 | 5040709 | Rectifier complete pl, te models | |
69 | 5040014 | Clamp 6.5 47.5p | |
70 | 5040719 | Band mount | |
71 | 5041515 | Band lead wire 203 | |
72 | 5041534 | Bolt | |
73 | 5040609 | Battery cable l 2750 pl, te models | |
74 | 5040653 | Protector 10.7 320 | |
75 | 5041557 | Bolt | This part replaces 5041530. |
76 | 5040716 | Terminal cap | |
77 | 5041234 | Starter cable l 270 pl, te models | |
78 | 5040568 | Protector 10.7 180 | |
79 | 5041476 | Terminal cap | |
80 | 5040349 | Terminal cap | |
81 | 5040602 | Protector 10.7 75 | |
82 | 5041389 | Fuse wire assembly w fuse l 185 pl, te models | |
83 | 5041256 | Fuse | |
84 | 5040711 | Fuse wire assemblyl 720 pl, te models | |
85 | 5041256 | Fuse | |
86 | 5040710 | Fuse holder bracket | |
87 | 5040722 | Band, 135 | |
88 | 5040715 | Cord assembly pl | |
89 | 5040722 | Band, 135 | |
90 | 5040656 | Cable terminal holder with collar | |
91 | 5040003 | Collar 6 8 6 | |
92 | 5041559 | Bolt upper | |
93 | 5041557 | Bolt lower | |
94 | 5040661 | Cover cable terminal holder | |
95 | 5040700 | Wiring diagram decal r, te models | |
95 | 5040744 | Wiring diagram decal pl |
