EVINRUDE-JOHNSON 5041847 Power Trim & Tilt Hydraulic Assembly

Write a Review
$2,318.49
SKU:
5041847
Schematic Object Key:
28

EVINRUDE-JOHNSON 5041847 Power Trim & Tilt Hydraulic Assembly

$2,318.49

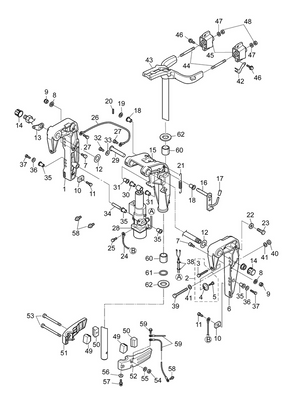

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5041847 Power Trim & Tilt Hydraulic Assembly

Schematic Object Key : 28

Product Description: Power Trim & Tilt Hydraulic Assembly

Category: EVINRUDE / AB Models / 15 PORTABLE / E15PGL4ABA / 16-4_STERN & SWIVEL BRACKET (POWER TILT)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5041910 Clamp bracket starboard
2 5040790 Clamp screw kit
3 5040789 Clamp screw
4 5040033 Clamp screw pad
5 5040770 Shoulder bolt
6 5041911 Clamp bracket port
7 5041501 Trim lock pin
8 5041138 Washer 8.1 16 1.5
9 5041458 Nylon nut
10 5041015 Anode
11 5041532 Bolt
12 5040320 Washer 22 36 1 nylon
13 5040319 Plate
14 5040070 Cap nut bracket bolt
15 5041848 Swivel bracket assembly
16 5041494 Tilt stopper
17 5040153 Tilt stopper grip
18 5040110 Collar 10.2 12 12
19 5041670 Washer
20 5041689 Spring pin
21 5041146 Tilt stopper spring
22 5040057 Washer 6.5 23 1.5
23 5041547 Bolt
24 5040243 Ground l 130
25 5041557 Bolt This part replaces 5041530.
26 5040243 Ground l 130
27 5041557 Bolt This part replaces 5041530.
28 5041847 Power trim tilt hydraulic assembly
29 5041152 Cylinder pin upper
30 5041499 Bushing 13 16 31
31 5041153 Bushing 13 17 19.5
32 5041546 Bolt
33 5040057 Washer 6.5 23 1.5
34 5041500 Cylinder pin lower
35 5041499 Bushing 13 16 31
36 5040011 Washer 8.5 28 1
37 5041552 Bolt
38 5041515 Band lead wire 203
39 5041555 Bolt
40 5041650 Nut
41 5041669 Washer
42 5041220 Lock plate water pipe
43 5041866 Steering shaft assembly
44 5041209 Stud bolt 10 95
45 5040673 Rubber mount upper 15 in. shaft
46 5041569 Bolt
47 5041670 Washer
48 5041656 Nylon nut
49 5040675 Damper lower
50 5040674 Rubber mount lower
51 5041856 Mount bracket starboard
52 5041857 Mount bracket port
53 5041554 Bolt
54 5041650 Nut
55 5041138 Washer 8.1 16 1.5
56 5040052 Anode
57 5041533 Bolt
58 5040055 Grease fitting
59 5041529 Bolt pl, te models
60 5041211 Bushing 28 31 35
61 5041082 O ring 3.5 25.7
62 5041083 Thrust plate
63 Grommet, Steering shaft
