EVINRUDE-JOHNSON 5041863 Propeller Shaft Housing

Write a Review
$112.99
SKU:
5041863
Schematic Object Key:
7

EVINRUDE-JOHNSON 5041863 Propeller Shaft Housing

$112.99

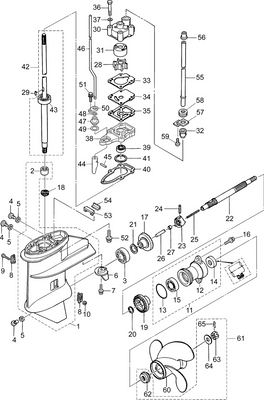

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5041863 Propeller Shaft Housing

Schematic Object Key : 7

Product Description: Propeller Shaft Housing

Category: EVINRUDE / AB Models / 15 PORTABLE / B15RG4ABA / 17-1_GEARCASE ASSEMBLY

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
5041850 Gearcase, complete 15 in. shaft
5041851 Gearcase, complete 20 in. shaft
1 5041852 Gearcase housing
2 5040666 Roller bearing
3 5040668 Ball bearing 6205hs
4 5040029 Plug
5 5040030 Gasket 8.1 15 1
6 5041853 Propeller shaft housing assembly
7 5041863 Propeller shaft housing
8 5040128 Roller bearing 17 24 20
9 5040668 Ball bearing 6205hs
10 5040001 O ring 2.4 59.6
11 5040080 Oil seal 17 30 9
12 5041561 Bolt
13 5041325 Trim tab
14 5041533 Bolt
15 5040681 Bevel gear assembly a
16 5040682 Bevel gear b
17 5040073 Nut bevel gear b
18 5040683 Bevel gear c
19 5040096 Washer 17.1 22 1.5
20 5040130 Propeller shaft
21 5040684 Clutch
22 5040097 Pin clutch 5 30
23 5040098 Snap clutch pin
24 5040034 Spring clutch
25 5040099 Spring retainer clutch
26 5040685 Push rod clutch
27 5041709 Ball steel 3 8
28 5040127 Water strainer
29 5041606 Screw
30 5041653 Nylon nut
31 5040144 Water strainer
32 5041639 Screw
33 5040046 Water pump impeller
34 5040104 Key pump impeller
35 5040102 Pump case upper
36 5040100 Pump case liner
37 5040101 Water pipe seal lower
38 5040103 Pump case lower
39 5040031 Oil seal 13.8 26 9.5
40 5040049 O ring 3.5 36
41 5040105 Water pump guide plate
42 5041566 Bolt
43 5040074 Shim 35 41.9 0.1
43 5040075 Shim 35 41.9 0.15
43 5040076 Shim 35 41.9 0.3
43 5040077 Shim 35 41.9 0.5
44 5040742 Drive shaft 15 in. shaft
44 5040743 Drive shaft 20 in. shaft
45 5040667 Ball bearing 7302a
46 5040605 Cam rod 15 in. shaft
46 5040606 Cam rod 20 in. shaft
47 5040458 Clutch cam
48 5041692 Spring pin 3 12
49 5041693 Spring pin
50 5040244 Bushing cam rod
51 5040035 O ring 2.4 5.8
52 5040049 O ring 3.5 36
53 5040037 Stopper cam rod bushing
54 5041556 Bolt
55 5041650 Nut
56 5041138 Washer 8.1 16 1.5
57 766546 Propeller aluminum 3 blade, 9.25 in diameter x 7 in pitch
57 766547 Propeller aluminum 3 blade, 9.25 in diameter x 8 in pitch
57 766548 Propeller aluminum 3 blade, 9.25 in diameter x 9 in pitch
57 766549 Propeller aluminum 3 blade, 9.25 in diameter x 10 in pitch
57 766550 Propeller aluminum 3 blade, 9.25 in diameter x 11 in pitch
57 0766551 Propeller 4 blade, 10 in. diameter x 5 in pitch
57 0766552 Propeller 4 blade, 10 in. diameter x 7 in pitch
58 5041468 Propeller hardware kit
59 5040131 Thrust holder
60 5040078 Propeller nut
61 5040079 Washer 12.5 32 2.5
62 5041696 Split pin 3 22
63 5040068 Sub water inlet hose plug optional
64 5040504 Shift rod
65 5040247 Lower unit gasket set
66 5040133 Water pump repair kit
67 5040132 Water pump kit chrome plated
NS 5040614 Extension housing kit converts 20 in. shaft to 25 in. shaft
