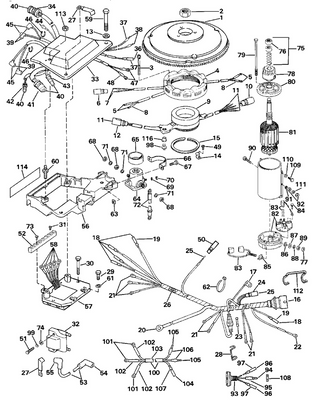

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 510859
Product Description: Tube
Category: JOHNSON / 1989 / 40 / J40TLCEC 1989 / IGNITION SYSTEM - ELECTRIC START
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
0510780 | 0510780 | 8 ring termianl | |
0581778 | 0581778 | Rectifier lead assy. | |
0510781 | 0510781 | Tubing, sleeve | |
0303701 | 0303701 | Lock washer, adjustment screw | |
0306644 | 0306644 | Screw, rectifier mounting | |
0513167 | 0513167 | Terminal, receptacle | |
0510781 | 0510781 | Tubing, sleeve | |
0583706 | 0583706 | Cable, relay | |
0513166 | 0513166 | Terminal, receptacle | |
0512062 | 0512062 | Terminal, ring | |
0513166 | 0513166 | Terminal, receptacle | |
0512876 | 0512876 | Terminal, socket | |
0512947 | 0512947 | Terminal, bullet | |
0583955 | 0583955 | Cable ay | |
0513185 | 0513185 | Sleeve | |
0583956 | 0583956 | Cable ay | |
0513167 | 0513167 | Terminal, receptacle | |
0511656 | 0511656 | Terminal | |
0513166 | 0513166 | Terminal, receptacle | |
0513167 | 0513167 | Terminal, receptacle | |
0512062 | 0512062 | Terminal, ring | |
0512762 | 0512762 | Terminal block | |
0309483 | 0309483 | Screw, terminal block rectifier | |
0329182 | 0329182 | Screw, ground terminal | |
0580339 | 0580339 | Cover terminal assy, coil | |
0510231 | 0510231 | Spring | |
0510231 | 0510231 | Spring | |
0582365 | 0582365 | H.t. lead assembly, spark plugs to ignition coil | |
0581027 | 0581027 | Cover terminal assy, spark plug | |
0330100 | 0330100 | Terminal | |
0510859 | 0510859 | Tube | |
0307161 | 0307161 | Lock washer, anode | |
0306644 | 0306644 | Screw, rectifier mounting | |
0583674 | 0583674 | Lead assembly, terminal block | |
0303701 | 0303701 | Lock washer, adjustment screw | |
0335020 | 0335020 | Screw, bracket to block | |
0510781 | 0510781 | Tubing, sleeve | |
0512062 | 0512062 | Terminal, ring | |
0334189 | 0334189 | Bracket | |
0328701 | 0328701 | Lockwasher, double ended bolt | |
0583740 | 0583740 | Coil assy | |
0328703 | 0328703 | Washer, screw hook | |
0328701 | 0328701 | Lockwasher, double ended bolt | |
0302325 | 0302325 | Screw, impeller housing | |
0328735 | 0328735 | Washer, screw, ball joint | |
0306643 | 0306643 | Screw | |
0328739 | 0328739 | Rondelle entre ancrage et support | |
0334191 | 0334191 | Bracket | |
0333757 | 0333757 | Cover | |
0512550 | 0512550 | Terminal | |
0510780 | 0510780 | 8 ring termianl | |
0513167 | 0513167 | Terminal, receptacle | |
0513166 | 0513166 | Terminal, receptacle | |
0513185 | 0513185 | Sleeve | |
0512947 | 0512947 | Terminal, bullet | |
0512876 | 0512876 | Terminal, socket | |
0583705 | 0583705 | Cable assembly | |
0512550 | 0512550 | Terminal | |
0583957 | 0583957 | Cable ay | |
0513166 | 0513166 | Terminal, receptacle | |
0513167 | 0513167 | Terminal, receptacle | |
0309433 | 0309433 | Borne | |
0325699 | 0325699 | . connector | |
0512753 | 0512753 | Connector, 5 socket plug | |
0581656 | 0581656 | Terminal, socket | |
0512876 | 0512876 | Terminal, socket | |
0513186 | 0513186 | Sheath, cell | |
0512478 | 0512478 | Couvercle, alvéole bobine primaire | |
0512256 | 0512256 | Broche, prise bobine primaire | |
0512478 | 0512478 | Couvercle, alvéole bobine primaire | |
0512256 | 0512256 | Broche, prise bobine primaire | |
0123404 | 0123404 | Connector, 1 socket plug | |
0511829 | 0511829 | Ring terminal | |
0510781 | 0510781 | Tubing, sleeve | |
0317893 | 0317893 | Tie strap | |
0511469 | 0511469 | Terminal, pin | |
0123405 | 0123405 | Connector | |
0511618 | 0511618 | Retainer, connector, 2 pin | |
0326111 | 0326111 | Nut | |
0513057 | 0513057 | Screw | |
0512136 | 0512136 | Tubing | |
0511601 | 0511601 | Sleeve, leads | |
0309545 | 0309545 | Screw, stator mounting | |
0513185 | 0513185 | Sleeve | |
0318322 | 0318322 | Attache câble | |
0511460 | 0511460 | Screw, ignition plate | |
0512876 | 0512876 | Terminal, socket | |
0513186 | 0513186 | Sheath, cell | |
0512947 | 0512947 | Terminal, bullet | |
0303212 | 0303212 | Screw, cover | |
0511458 | 0511458 | . clamp, leads | |
0334994 | 0334994 | Ring locating | |
0583285 | 0583285 | Plat sleeve assy. | |
0332790 | 0332790 | Retainer | |
0511459 | 0511459 | . cover, leads | |
0303212 | 0303212 | Screw, cover | |
0332063 | 0332063 | Plate, support | |
0512947 | 0512947 | Terminal, bullet | |
0513185 | 0513185 | Sleeve | |
0322435 | 0322435 | Bearing, timer base plate to | |
0583675 | 0583675 | Lead assy., module to temp. switch | |
0513186 | 0513186 | Sheath, cell | |
0512876 | 0512876 | Terminal, socket | |
0510780 | 0510780 | 8 ring termianl | |
0510780 | 0510780 | 8 ring termianl | |
0581656 | 0581656 | Terminal, socket | |
0513185 | 0513185 | Sleeve | |
0512947 | 0512947 | Terminal, bullet | |
0321077 | 0321077 | Retainer | |
0320107 | 0320107 | Tie strap | |
0511469 | 0511469 | Terminal, pin | |
0512748 | 0512748 | Connector, 3 pin | |
0583649 | 0583649 | Cable | |
0513186 | 0513186 | Sheath, cell | |
0512876 | 0512876 | Terminal, socket | |
0510884 | 0510884 | Fuse, 20 amp. | |
0512876 | 0512876 | Terminal, socket | |
0513186 | 0513186 | Sheath, cell | |
0204053 | 0204053 | Borne, anneau 0,312" 7,9 mm diamètre | |
0204036 | 0204036 | 10 ring termial,12v | |
0583898 | 0583898 | Diode | |
0315181 | 0315181 | Clamp, motor cable | |
0326365 | 0326365 | Clip, spring | |
0313117 | 0313117 | Scr,clamp,eng cable |
