EVINRUDE-JOHNSON 511656 Terminal

Write a Review
$5.78
SKU:
511656
Schematic Object Key:
66

EVINRUDE-JOHNSON 511656 Terminal

$5.78

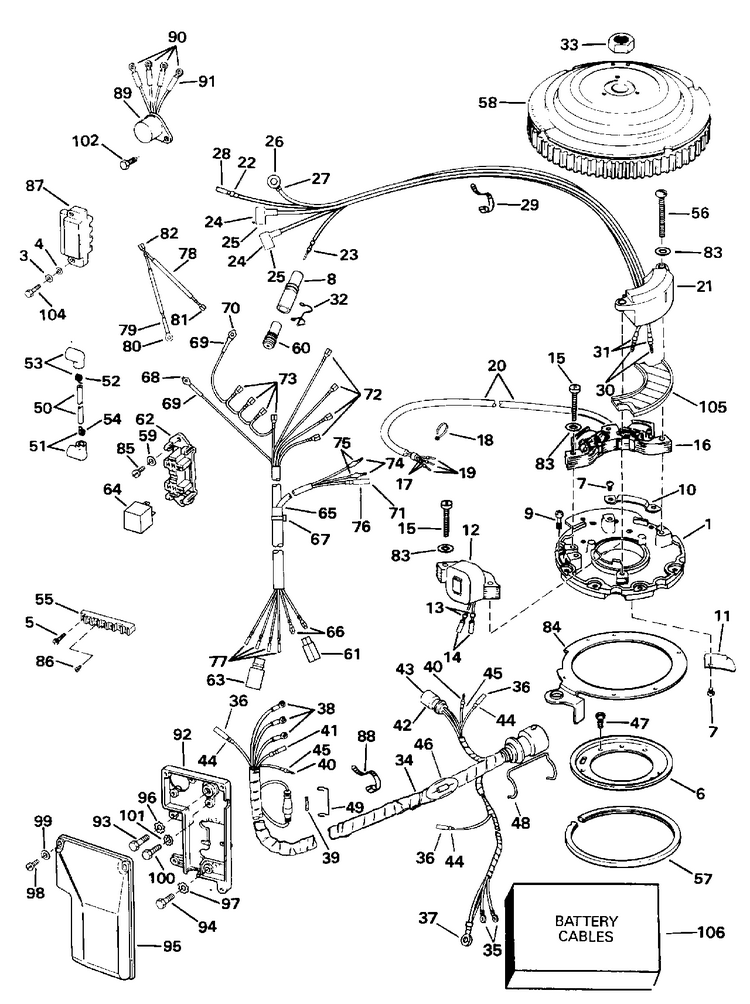

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 511656 Terminal

Schematic Object Key : 66

Product Description: Terminal

Category: JOHNSON / 1992 / 40 / TJ40ELENJ 1992 / IGNITION SYSTEM - ELECTRIC START & TL MODELS ("M" SUFFIX)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0583285 Plat sleeve assy.
3 0328701 Lockwasher, double ended bolt
4 0328703 Washer, screw hook
5 0309483 Screw, terminal block rectifier
6 0332063 Plate, support
7 0303212 Screw, cover
8 0513357 Connector, 1 pin receptacle
9 0511460 Screw, ignition plate
10 0511458 . clamp, leads
11 0511459 . cover, leads
12 0584333 Charge coil lam. assy.
13 0513654 Sleeve, socket
14 0512876 Terminal, socket
15 0320504 Screw, bracket to carburetor
16 0584341 Stator assembly
17 0512136 Tubing
18 0318322 Attache câble
19 0510780 8 ring termianl
20 0511601 Sleeve, leads
21 0584489 Ignition module
22 0513186 Sheath, cell
23 0511469 Terminal, pin
24 0512478 Couvercle, alvéole bobine primaire
25 0512256 Broche, prise bobine primaire
26 0511829 Ring terminal
27 0510781 Tubing, sleeve
28 0512876 Terminal, socket
29 0317893 Tie strap
30 0512947 Terminal, bullet
31 0513185 Sleeve
32 0512741 Retainer, connector, 1 pin
33 0326111 Nut
34 0584398 Motor cable assy,.
35 0204036 10 ring termial,12v
36 0512876 Terminal, socket
37 0204053 Borne, anneau 0,312" 7,9 mm diamètre
38 0510780 8 ring termianl
39 0510884 Fuse, 20 amp.
40 0512947 Terminal, bullet
41 0581656 Terminal, socket
42 0512750 Connector, 4 pin
43 0511469 Terminal, pin
44 0513186 Sheath, cell
45 0513185 Sleeve
46 0583898 Diode
47 0332070 Screw, retaining plate This part replaces 0326875.
48 0315182 Clamp, cables
49 0321077 Retainer
50 0582365 H.t. lead assembly, spark plugs to ignition coil
51 0581027 Cover terminal assy, spark plug
52 0510231 Spring
53 0580339 Cover terminal assy, coil
54 0510231 Spring
55 0512762 Terminal block
56 0330184 Screw This part replaces 0306259.
57 0322435 Bearing, timer base plate to
58 0584261 Flywheel assy
59 0328739 Rondelle entre ancrage et support
60 0513356 Connector, 1 socket plug
0175299 0175299 Relay cable assembly, tnt
61 0325699 . connector
62 0334191 Bracket
63 0512753 Connector, 5 socket plug
64 0586224 Relay assy. This part replaces 0584416.
65 0583705 Cable assembly
66 0511656 Terminal
67 0320107 Tie strap
68 0510780 8 ring termianl
69 0510781 Tubing, sleeve
70 0511829 Ring terminal
71 0512876 Terminal, socket
72 0513166 Terminal, receptacle
73 0513167 Terminal, receptacle
74 0512947 Terminal, bullet
75 0513185 Sleeve
76 0513186 Sheath, cell
77 0581656 Terminal, socket
78 0583706 Cable, relay
79 0510781 Tubing, sleeve
80 0510780 8 ring termianl
81 0513166 Terminal, receptacle
82 0513167 Terminal, receptacle
83 0303952 Washer, stator mounting
84 0332790 Retainer
85 0306643 Screw This part replaces 0324064.
86 0329182 Screw, ground terminal
87 0583740 Coil assy
88 0320107 Tie strap
89 0581778 Rectifier lead assy.
90 0510780 8 ring termianl
91 0510781 Tubing, sleeve
92 0334189 Bracket
93 0330930 Screw, plate 3 8 16 x 1 This part replaces 0335021.
94 0335020 Screw, bracket to block
95 0333757 Cover
96 0307161 Lock washer, anode
97 0328701 Lockwasher, double ended bolt
98 0306643 Screw
99 0328735 Washer, screw, ball joint
100 0309483 Screw, terminal block rectifier
100 0309483 Screw, terminal block rectifier
101 0303701 Lock washer, adjustment screw
102 0306644 Screw, rectifier mounting
104 0302325 Screw, impeller housing
105 0513870 Pad, ignition module
106 0584381 Battery cable
