EVINRUDE-JOHNSON 511866 Connector

Write a Review
$14.99
SKU:
511866
Schematic Object Key:
76

EVINRUDE-JOHNSON 511866 Connector

$14.99

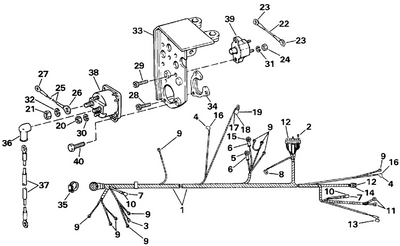

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 511866 Connector

Schematic Object Key : 76

Product Description: Connector

Category: EVINRUDE / 2001 / 200 / RE200FSSIF FFI, elec start, TNT, 20 in shaft, wht 2001 / ENGINE CABLE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0127287 Cale verrouillage
2 0204053 Borne, anneau 0,312" 7,9 mm diamètre
3 0327283 Lockwasher
4 0332067 Screw
5 3010484 Connector, 2 pin recpticle
6 3010485 Terminal
7 0510818 Terminal, ring
8 0511829 Ring terminal
9 0583898 Diode
10 0512256 Broche, prise bobine primaire
11 0512478 Couvercle, alvéole bobine primaire
12 0512550 Terminal
13 0513356 Connector, 1 socket plug
14 0204363 Terminal, ring
15 3010049 Connector, 2 position, motor lead
16 3010023 Seal, wire
17 3010050 Secondary lock
18 0513439 Terminal
19 0513773 Terminal, pin
20 0514485 Seal
21 0600138 Ring terminal
22 0510780 8 ring termianl
23 0514591 Connector 3 pin
24 0514679 Borne, broche
25 0514680 Socket
26 0514681 Lock wedge, 3 socket
27 0514682 Lock wedge, 3 pin
28 0514683 Cale verrouillage, fiche 6 broches
29 0514684 Lock wedge, 6 pin
30 0514687 Connecteur, fiche 6 broches
31 0514688 Connector, 6 pin
32 0514690 Bouchon, mâle
33 0176295 Connecteur, 2 broches
34 0514697 Lock wedge, 2 pin
35 0514823 Terminal
36 0514824 Connector 4 socket
37 0514858 Bouchon, mâle
38 0514889 Cover, capacitor
39 0581656 Terminal, socket
41 3010206 Capacitor
42 0586397 70a relay
43 0514768 Fuse, 20 amp
44 0127287 Cale verrouillage
45 3010023 Seal, wire
46 3010124 Connector seal, 2 pin plug
47 3010125 Terminal, socket
48 3010126 Connector, main power relay
49 3010128 Terminal, 1 4 in.
50 3010129 Terminal, 3 8 in.
51 0176295 Connecteur, 2 broches
52 0176295 Connecteur, 2 broches
53 0176295 Connecteur, 2 broches
54 0514685 Connector, 3 socket
55 0176295 Connecteur, 2 broches
56 0176295 Connecteur, 2 broches
57 0514686 Connecteur, 3 broches
58 0176295 Connecteur, 2 broches
59 0176295 Connecteur, 2 broches
60 0514685 Connector, 3 socket
61 0514686 Connecteur, 3 broches
62 3010593 Connector, cps
63 0514685 Connector, 3 socket
64 0514788 Seal, 2 socket
65 0514789 Seal, connector
66 0176295 Connecteur, 2 broches
67 0514790 Joint, 6 alvéoles
68 3010398 Seal, tps connector
69 0513665 Plug
70 0513664 Connector
71 0911729 O ring
72 0513667 Terminal
73 0586224 Relay assy.
74 0513166 Terminal, receptacle
75 0513167 Terminal, receptacle
76 0511866 Connector
77 3010594 Lock wedge
78 0317893 Tie strap
79 0320107 Tie strap
