EVINRUDE-JOHNSON 512211 Arm

Write a Review
$17.99
SKU:
512211
Schematic Object Key:
88

EVINRUDE-JOHNSON 512211 Arm

$17.99

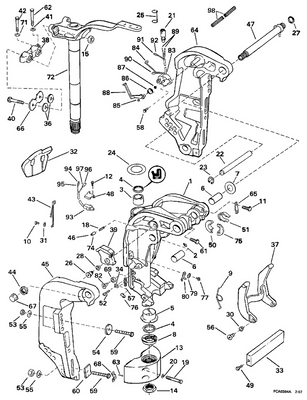

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 512211 Arm

Schematic Object Key : 88

Replacement: This part (512211) replaces 0511530.

Product Description: Arm

Category: EVINRUDE / 1980 / 85 / E85STXCSA 1980 / EXHAUST HOUSING

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0432708 Swivel bracket This part replaces 0389335.
1 0432710 Swivel bracket This part replaces 0389336.
2 0313607 Lube fitting
3 0320962 Bushing
4 0320937 Seal
5 0321035 Brushing, swivel bracket
6 0320866 Rondelle de butée, arbre d'articulation
7 0392518 Steering arm assy. This part replaces 0387222.
7 0392519 Steering arm assy. This part replaces 0387223.
8 0320865 Thrust wasaher
9 0320942 Keeper pivot shaft
10 0338942 Cover, mount bracket lower This part replaces 0320864.
11 0322000 Screw, starter motor
12 0322860 Mount backet
13 0320746 Ecrou, support de montage
14 0553766 Bow washer
15 0323549 Eshaust housing,outer
15 0435318 Exhaust housing, outer This part replaces 0323550.
16 0328698 Screw, adapter to crankcase This part replaces 0908931.
17 0306470 Lock washer
18 0387783 Rubber mount, lower, std
18 0387998 Rubber moung,hi performance
19 0318612 Screw, bracket to cover This part replaces 0321737.
20 0307708 Lock washer, mounting
21 0390131 Cover, exhaust housing, rear
22 0318258 Seal cover
23 0328694 Screw, bracket This part replaces 0321527.
24 0321920 Spring, reverse lock
25 0328739 Rondelle entre ancrage et support This part replaces 0313396.
26 0335814 Retainer, trail lock This part replaces 0325525.
27 0323403 Water tube
27 0323404 Water tube
28 0305145 Grommet
29 0319682 Screw, extension
30 0324059 Adapter, exhaust housing
31 0302479 Screw, starter mounting
32 0321692 Grommet
33 0332369 Gasket This part replaces 0321897.
34 0302290 Washer
35 0306418 Screw, anchor block lower
36 0306409 Screw, anchor block lower
37 0342513 Gasket, adapter to powerhead This part replaces 0321727.
38 0387797 Rubber mount assy., upper
39 0301431 Screw
40 0307708 Lock washer, mounting
41 0335612 Screw, upper This part replaces 0316406.
42 0322624 Washer, lag screw This part replaces 0313169.
43 0317894 Cap, tilt tube
44 0323599 Locknut This part replaces 0316828.
45 0395844 Steering bracket, assy., stbd. This part replaces 0325595.
46 0910992 Rondelle, tube de relevage This part replaces 0321036.
47 0335553 Tilt tube This part replaces 0321052.
48 0318173 Plug, stop switch
49 0320792 Pin
50 0322481 Bushing, tilt cylinder
51 0323800 Cover, exhause housing, front, plastic
52 0321054 Spring clip
53 0363254 Nut, stern bracket screw This part replaces 0321861.
54 0307238 Rondelle
55 0320248 Rondelle, écrou
56 0318273 Bolt hex retainer 1 2 in.
57 0319886 Screw
58 0318572 Bolt thread protective cap 1 2 in.
59 0318573 3.5" bolt
59 0363012 Screw, bracket mounting This part replaces 0313327.
59 0363011 Screw, stern bracket mounting, 1 2 x 5.75 in. 146 mm This part replaces 0321577.
60 0318272 Nut backing plate square 1 2 in.
61 0436541 Rod assy, thrust This part replaces 0387278.
62 0321053 Sorubg,thrust rod
63 0323142 Spring, trail lock return
64 0396309 Stern bracket assembly, port This part replaces 0325594.
65 0390442 Locating lever, rod
66 0321868 Spacer
67 0327796 Exhasut hsg,inner lower This part replaces 0320838.
67 0327797 Exhaust housing, inner lower This part replaces 0320839.
68 0323255 Eshaust hsg,inner
69 0321499 Thrust pad, trim rod
70 0315077 Locknut, 3 8 24 ss
71 0320936 Joint, boîtier échappement, inférieur
72 0322302 Seal, adapter to frame
73 0329109 Shoulder screw This part replaces 0321389.
74 0316355 But, carburetor mounting This part replaces 0315204.
75 0600014 Screw
76 0318395 Check valve
77 0317222 Screw
78 5005440 Thermostat This part replaces 0378065.
79 0323459 Gasket
80 0320961 Joint, boîtier d'engrenages vers carter intérieur
81 0121025 Clip,contact retainer
82 0303398 Screw, lower This part replaces 0302030.
83 0552968 Screw, plate 3 8 16 x 1.5 This part replaces 0321675.
83 0318612 Screw, bracket to cover This part replaces 0321737.
84 0582153 Sending unit
85 0511527 Retainer
86 0511528 Spring
87 0320689 Ecrou
88 0512211 Arm This part replaces 0511530.
89 0321690 Cover, thermostat
90 0323144 Spacer
91 0321693 Valve body
92 0322376 Nut, wiper, tilt tube
93 0321932 Gasket, thermostat
94 0317245 Spring, control valve
95 0322085 Spring, trail lock return
96 0390097 Lever and ahsft
97 0322628 Set screw, spacer
97 0909676 Screw
98 0387792 Shock absorber and spring
99 0321243 Bushing, cable
101 0318238 Screw
102 0123077 Screw, bracket, remote model
103 0204757 Bow washer
104 0302858 Cotter pin, shoulder bolt
105 0303887 Washeer, pin to swivel bracket
107 0319108 Screw belcrank
108 0321246 Bushing, shock lower
110 0321591 Pin, link to locking
111 0321592 Pin, link to swivel bracket
113 0321695 Pin, cylinder, lower
114 0321748 Lin, reverse lock, starboard
115 0325526 Belcrank, releasing rod
116 0321750 Locking lever, reverse lock
119 0325528 Spring, trail lock
120 0321837 Link, reverse lock, port
