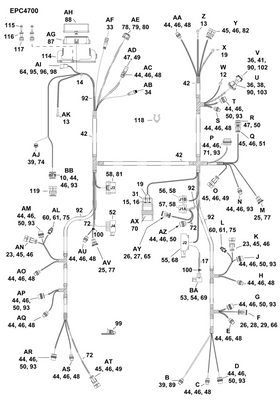

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 21
Product Description: Terminal, Socket
Category: EVINRUDE / 1993 / 150 / E150NXATG 1993 / CYLINDER & CRANKCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0435436 | Cylinder c'case ay. | |
1 | 0435282 | Cylinder c'case ay., 175 | |
2 | 0304178 | Pin, dowel | |
3 | 0305070 | Axe, carter moteur vers bloc | |
4 | 0336630 | Goupille, cylindrique | |
5 | 0336166 | Screw, c c to block | |
6 | 0335611 | Screw, cyl to case, long | |
7 | 0335369 | Fitting, drain | |
8 | 0435681 | Check valve assembly | |
9 | 0914534 | Screw, gearcase to housing, rear | |
10 | 0433817 | Ensemble levier, tige de commande de sens de marche | |
11 | 0332135 | Plug | |
12 | 0306500 | Screw, belt retainer | |
13 | 0502180 | Spark plug, champion ql77jc4 | This part replaces 0387633. |
13 | 0432424 | Spark plug , ql16v | |
14 | 0305650 | Cotter pin | |
15 | 0584589 | Temperature switch | |
16 | 0512947 | Terminal, bullet | |
17 | 0513185 | Sleeve | |
18 | 0338632 | Thermostat cover | |
19 | 0329562 | Cache, interrupteur | |
20 | 0584152 | Temperature switch | |
21 | 0512876 | Terminal, socket | |
22 | 0513185 | Sleeve | |
23 | 0512947 | Terminal, bullet | |
24 | 0513186 | Sheath, cell | |
25 | 0331188 | O ring | |
26 | 0335981 | Seal, t stat cylinder head to c c | |
27 | 0328744 | Screw, clamp 1 4 20 x .75 | |
28 | 0330935 | Bague, retenue de la tige du levier de sens de marche | |
29 | 0328725 | Screw, cover to gearcase | |
30 | 0436857 | Bouchon gicleur, indicateur d'éjection | This part replaces 0336217. |
31 | HOSE, Drain system | ||
32 | 0344277 | Screw, upper mount | This part replaces 0338302. |
33 | 0435272 | Rubber mount assy., upper | |
34 | 0320107 | Tie strap | |
35 | 0335521 | Bague, levier de sens de marche vers bloc | |
36 | 0335523 | O ring, cylinder head | |
37 | 0330933 | Screw, reverse lock link | |
38 | 0343118 | Liaison, levier vers bras de commande de sens de marche | This part replaces 0335382. |
39 | 0328725 | Screw, cover to gearcase | |
40 | 0306012 | Bow washer | |
41 | 0336136 | Clamp | |
42 | 0311015 | Bushing, pawl | |
43 | 0316195 | Screw | |
44 | 0202026 | Washer, rod | |
45 | 0439333 | Shift lever | This part replaces 0435518. |
46 | 0328702 | Washer | |
47 | 0349060 | Cache, tourillon | This part replaces 0335528. |
48 | 0303492 | Fitting, crankcase | |
49 | 0330941 | Pin, retainer | |
50 | 5000470 | Shift shaft arm assy | This part replaces 0433476. |
51 | 0349061 | Tourillon | This part replaces 0335594. |
52 | 0435491 | Thermostat | |
53 | 0338174 | Ressort, thermostat | |
54 | 0328733 | Rondelle, ressort | |
55 | 0333774 | Attache, commande vers tringlerie de sens de marche | |
56 | 0433475 | Grommet insert, exhaust relief | |
57 | 0328744 | Screw, clamp 1 4 20 x .75 | |
58 | 0335316 | Joint, tige de commande de sens de marche | |
59 | 0436726 | Indicator plug, overboard water | This part replaces 0335429. |
60 | 0335530 | Reed valve | |
61 | 0304376 | Washer, handle to bracket | |
62 | 0335730 | Nipple, lower drain | |
63 | 0305739 | "o"ring,valve seat | |
64 | 0328649 | Screw, bowl to body | |
65 | 0301967 | O ring | |
66 | 0337548 | Cylinder head, 150 | |
66 | 0338082 | Cylinder head | |
66 | 0338311 | Cylinder head, 150 | |
67 | 0337478 | Guide, fils du stator | |
68 | 0349557 | Mount | This part replaces 0328584. |
69 | 0349556 | Washer | This part replaces 0329749. |
74 | 0335508 | Retainer, upper mount | |
75 | 0344277 | Screw, upper mount | This part replaces 0336743. |
76 | 0584666 | Switch cable | |
77 | 0510818 | Terminal, ring | |
78 | 0513356 | Connector, 1 socket plug | |
79 | 0513357 | Connector, 1 pin receptacle | |
80 | 0511469 | Terminal, pin | |
81 | 0581656 | Terminal, socket | |
82 | 0513811 | Bracket, neutral switch slider | |
83 | 0513134 | Bracket, neutral switch | |
84 | 0333749 | Ressort, interrupteur de démarrage au point mort | |
85 | 0338990 | Pin, shift assist | |
86 | 0512741 | Retainer, connector, 1 pin | |
87 | 0335499 | Joint d'étanchéité, bâbord | |
88 | 0335500 | Joint, tribord | |
89 | 0437155 | Powerhead gasket set |
